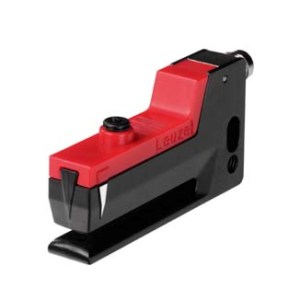

Leuze Forked Sensor
GS 61/6.2-S8.3
Brand Leuze Electronics
Model Number GS 61/6.2-S8.3
Part Number 50110765
Sensor type Fork Photoelectric Sensor
Leuze Fork Photoelectric Sensor GS 61/6.2-S8.3 Technical Features:
IndMALL provides Leuze GS 61/6.2-S8.3 optical forked sensor. Its part number is 50110765, and it belongs to the GS 61 series of fork-type sensors. The sensor is optical and is specifically designed to detect non-transparent labels with a label width and gap of 2 mm each. The sensor has 5-wire conductors and comes with a cable length of 2000 mm. It requires a supply voltage ranging from 10 to 30 V DC.
Part Number | 50110765 |
Series | 61 |
Principle of Physics | Optical |
Application | Detection of non-transparent labels |
Label width, min. | 2 mm |
Label gap, min. | 2 mm |
Medium | Not transparent |
Light Source | LED, Infrared |
Wavelength | 940 nm |
Supply voltage UB | 10 … 30 V DC |
Open-circuit current | 0 … 30 mA |
Number of digital switching outputs | 1 Piece(s) |
Type | Digital switching output |
Voltage type | DC |
Switching current, max. | 100 mA |
Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
Switching element | Transistor, Push-pull |
Switching principle | Switching signal in label gap |
Switching frequency | 10,000 Hz |
Response time | 0.05 ms |
Readiness delay | 300 ms |
Max. conveyor speed during teach-in | 20 m/min |
Number of connections | 1 Piece(s) |
Function | Signal OUT Voltage supply |
Type of connection | Connector |
Thread size | M8 |
Type | Male |
Material | Metal |
No. of pins | 3 -pin |
Encoding | A-coded |
Plug outlet | Horizontal (parallel to belt movement) |
Design | Fork |
Mouth width | 3 mm |
Mouth depth | 41 mm |
Dimension (W x H x L) | 11 mm x 30 mm x 60 mm |
Housing material | Plastic |
Plastic housing | PC |
Lens cover material | Plastic/PC |
Net weight | 20 g |
Housing color | Black, RAL 9005 Red, RAL 3000 |
Type of fastening | Mounting thread Through-hole mounting Via the optional mounting device |
Type of display | LED |
Number of LEDs | 3 Piece(s) |
Operational controls | Teach button |
Ambient temperature, operation | -20 … 60 °C |
Ambient temperature, storage | -30 … 70 °C |
Degree of protection | IP 65 |
Certifications | c UL US |
The Leuze GS 61/6.2-S8.3 optical forked sensor is a high-performance sensor designed for detecting non-transparent labels with a label width and gap of 2mm each. This fork-type optical sensor operates on the principle of physics and has an LED light source with a wavelength of 940 nm. The sensor has a 5-wire conductor and a cable length of 2000 mm, and requires a supply voltage of 10 to 30 V DC.
The Leuze GS 61/6.2-S8.3 optical forked sensor features a digital switching output with a maximum switching current of 100 mA and a switching voltage of high: ≥(UB-2V), low: ≤ 2 V. The sensor has a fast response time of 0.05 ms and a switching frequency of 10,000 Hz, making it ideal for high-speed label detection. Additionally, the sensor has a readiness delay of 300 ms.
The Leuze GS 61/6D.2-S8.3 optical forked sensor is designed for easy installation and features a 3mm mouth width and a 41mm mouth depth. The sensor has a compact design with dimensions of 11mm x 30mm x 60mm, and a net weight of 20 g. It has a plastic housing made of PC and is available in two colors – black and red.
The sensor has a degree of protection from IP 65, making it resistant to dust and water. It has been certified by c UL US for its high-quality and safety standards. The GS 61/6.2-S8.3 sensor also features a teach button and LED display, making it easy to set up and use.
