Leuze Ultrasonic Sensor
GSU14E/16T.3-M12
Leuze GSU14E/16T.3-M12 Technical Features
The Leuze GSU14E/16T.3-M12 is a type of ultrasonic fork sensor identified by part number 50142877. As part of the GS 14 series, it is capable of identifying labels on objects passing through its fork-shaped housing. With a label width of 4mm and a label gap of 2mm, it can detect labels with a minimum size of 4mm and a gap of 2mm. This sensor is designed to be connected using an M12 connector and requires a power supply voltage ranging from 18 to 30 VDC.
| Series | 14 |
| Principle of Physics | Ultrasonics |
| Application | Detection of non-transparent labels Detection of transparent labels |
| Label width, min. | 4 mm |
| Label gap, min. | 2 mm |
| Medium | Transparent and not transparent |
| Special version | Manual fine-tuning of the switching threshold Teach input |
| Supply voltage UB | 18 … 30 V, DC |
| Open-circuit current | 0 … 60 mA, Typical value |
| Number of teach inputs | 1 Piece(s) |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥9V low: ≤ 2 V |
| Input resistance | 15,000 Ω |
| Active switching state | High |
| Number of digital switching outputs | 2 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Load capacity | 0.01 µF |
| Switching element | Transistor, Push-pull |
| Switching(Output 1) principle | IO-Link / NPN light switching (switching in the gap), PNP dark switching (switching on the label) |
| Switching(Output 2) principle | PNP light switching (switching in the gap), NPN dark switching (switching on the label) |
| Switching frequency | 2,000 Hz |
| Response time | 0.2 ms |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 50 m/min |
| Type | IO-Link |
| COM mode | COM3 |
| Profile | Smart sensor profile |
| Min. cycle time | COM3 = 0.5 ms |
| Frame type | 2.5 |
| Specification | V1.1 |
| Device ID | 2521 |
| SIO-mode support | Yes |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Plug outlet | Horizontal (parallel to belt movement) |
| Design | Fork |
| Mouth width | 4 mm |
| Mouth depth | 80 mm |
| Dimension (W x H x L) | 22 mm x 46.9 mm x 96 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc, galvanic nickel coating |
| Net weight | 270 g |
| Housing color | Silver |
| Type of fastening | Mounting thread Through-hole mounting |
| Type of display | LED |
| Number of LEDs | 3 Piece(s) |
| Operational controls | Control buttons |
| The function of the operational control | Dynamic teach on label carrier and label |
Product Documentation: GSU14E/16T.3-M12
Related Products: GSU14E/16T.3-M12
GS 63B/6-S8V – 50128012
Label Gap Sensor, Model No: GS 63B/6-S8V, Part Number: 50128012, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GSX14E/LWT.3-M12V – 50142866
Label Gap Sensor, Model No: GSX14E/LWT.3-M12V, Part Number: 50142866, Series: Fork type GS 14, Principle of physics: Optical and Ultrasonic Sensor, Label width: 4 mm Ultrasonics / 2 mm Optical, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 63B/66.3-S8 – 50143910
Leuze Label Gap Sensor, Model No: GS 63B/66.3-S8, Part Number: 50143910, Series: Fork type GS 63, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.

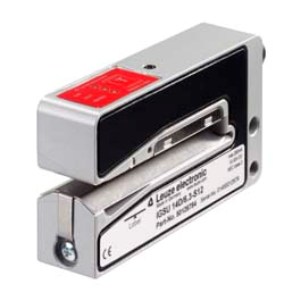

GSU 14D/66D.31-S12 – 50126783
Label Gap Sensor, Model No: GSU 14D/66D.31-S12, Part Number: 50126783, Series: Fork type GS 14, Principle of physics: Ultrasonic Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.

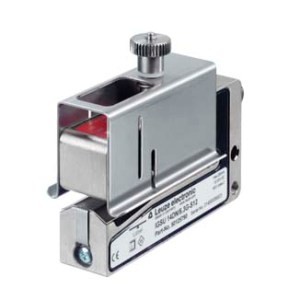

IGSU 14D/6.3G-S12 – 50127969
Label Gap Sensor, Model No: IGSU 14D/6.3G-S12, Part Number: 50127969, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GS 63B/6D – 50128006
Label Gap Sensor, Model No: GS 63B/6D, Part Number: 50128006, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
IGSU 14D/6.3-S12 – 50126784
Leuze Label Sensor, Model No: IGSU 14D/6.3-S12, Part Number: 50126784, Series: Fork type GS 14, Principle of physics: Ultrasonic Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.

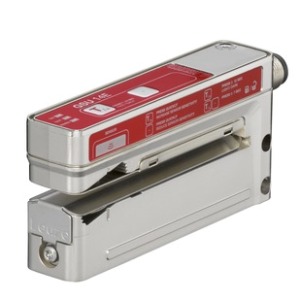

IGSU14E/LWT.3-M12 – 50142870
Leuze Label Gap Sensor, Model No: IGSU14E/LWT.3-M12, Part Number: 50142870, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.

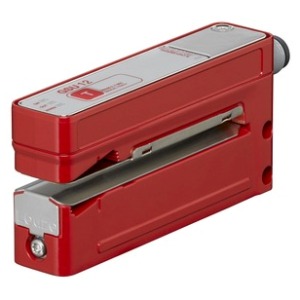

GSU12/6G.3-M8 – 50145981
Leuze Label Gap Sensor, Model No: GSU12/6G.3-M8, Part Number: 50145981, Series: Fork type GS 12, Principle of physics: Ultrasonic Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.

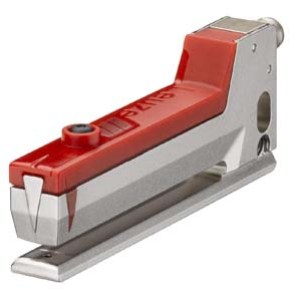

IGS 63B/6.3 – 50128013
Label Gap Sensor, Model No: IGS 63B/6.3, Part Number: 50128013, Series: Fork type IGS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5-wire.
IndMALL offers the Leuze GSU14E/16T.3-M12 ultrasonic fork sensor with part number 50142877. It belongs to the GS 14 series and operates on the principle of ultrasonics to detect non-transparent and transparent labels. This GSU14E/16T.3-M12 sensor has a minimum label width of 4mm and a label gap of 2mm, making it capable of detecting labels of this size.
The GSU14E/16T.3-M12V sensor is designed for a supply voltage range of 18 to 30VDC and has an open-circuit current typical value of 0-60 mA. It features a manual fine-tuning of the switching threshold and one teach input with a voltage type of DC, an input resistance of 15,000Ω, and an active switching state of high. The device also has two digital switching outputs with a maximum switching current of 100mA, a switching voltage range of high:≥(UB-2V) and low:≤2V, and a load capacity of 0.01µF.
The Leuze GSU14E/16T.3-M12 Lable Gap Sensors feature a transistor push-pull switching element and support various output modes, including IO-Link/NPN light switching (switching in the gap), PNP dark switching (switching on the label), PNP light switching (switching in the gap), and NPN dark switching (switching on the label). It has a switching frequency of 2,000 Hz, a response time of 0.2 ms, and a readiness delay of 300 ms.
The device has a maximum band speed of 50 m/min during Teach-In and has an IO-Link COM3 profile that supports SIO mode. The GSU14E/16T.3-M12 sensor’s housing is made of die-cast zinc with a galvanic nickel coating and has a net weight of 270g. The housing color is silver, and the device is designed for mounting using a threaded or through-hole fastening.
The Leuze GSU14E/16T.3-M12 ultrasonic fork sensor features an LED display with three LEDs and control buttons for operational control. The device has a dynamic teach function that can be used on label carriers and labels. The GSU14E/16T.3-M12 Fork Photoelectric Sensor has a degree of protection of IP 67 and a protection class of III.
