Leuze Ultrasonic Fork Sensor
IGSU 14DN/6D.3-S12
Leuze IGSU 14DN/6D.3-S12 Technical Features
The Leuze IGSU 14DN/6D.3-S12 is an ultrasonic fork sensor with part number 50143533. It belongs to the GS 14 series and has a label identification fork type. It uses an M12 connector and requires a supply voltage of 12 to 30 VDC. The sensor has a LED light source and can be easily adjusted using a lockable teaching button or teaching input. The label width is 10mm and the label gap of 2mm.
| Series | 14 |
| Principle of Physics | Ultrasonics |
| Application | Detection of non-transparent labels Detection of transparent labels |
| Label width, min. | 10 mm |
| Label gap, min. | 2 mm |
| Medium | Transparent and not transparent |
| Special version | Teach input Warning output |
| Supply voltage UB | 12 … 30 V, DC |
| Open-circuit current | 0 … 80 mA |
| Number of teach inputs | 1 Piece(s) |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥8V low: ≤ 2 V |
| Input resistance | 15,000 Ω |
| Active switching state | High |
| Number of digital switching outputs | 2 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Load Capacity | 0.5 µF |
| Switching element | Transistor, Push-pull |
| Switching(Output 1) principle | Dark switching (PNP)/light switching (NPN) |
| Switching(Output 2) principle | 0 V switching |
| Response time | 0.2 ms |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 50 m/min |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Plug outlet | Horizontal |
| Design | Fork |
| Mouth width | 4 mm |
| Mouth depth | 70 mm |
| Dimension (W x H x L) | 21 mm x 49 mm x 90 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc, galvanic nickel coating |
| Net weight | 270 g |
| Housing color | Red Silver |
| Type of fastening | Through-hole mounting |
| Type of display | LED |
| Number of LEDs | 3 Piece(s) |
| Operational controls | Teach buttons |
| The function of the operational control | Static teach on background and mark |
| Certifications | c UL US |
| Standards applied | IEC 60947-5-2 |
Product Documentation: IGSU 14DN/6D.3-S12
Related Products: IGSU 14DN/6D.3-S12
IGS 63B/6.3 – 50128013
Label Gap Sensor, Model No: IGS 63B/6.3, Part Number: 50128013, Series: Fork type IGS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5-wire.
GS 61/6D.2425-S12 – 50145357
Leuze Label Gap Sensor, Model No: GS 61/6D.2425-S12, Part Number: 50145357, Series: Fork type GS 61, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable with Connector, Cable length:425 mm, Thread size: M12, Number of pins: 5-pin.

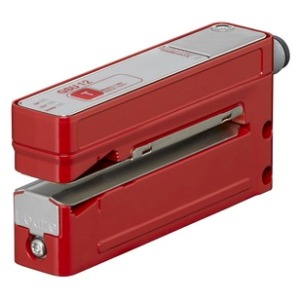

GSU12/G6.3-M8 – 50145982
