Leuze Ultrasonic Fork Sensor
GSX14E/LWT.3-M12V
Brand Leuze Electronics
Model Number GSX14E/LWT.3-M12V
Part Number 50142866
Sensor type Ultrasonic Fork Sensor
Leuze GSX14E/LWT.3-M12V Forked Sensor Technical Features:
The Leuze GSX14E LWT 3 M12V model is an ultrasonic and optical forked sensor belonging to the GS 14 series, with a part number 50142866. It is designed with a fork-type label identification system that features a label width of 4 mm for ultrasonics and 2 mm for optical, and a label gap of 2 mm. This sensor uses a Connector M12 and requires a supply voltage within the range of 18 to 30 V DC.
| Part Number | 50142866 |
| Series | 14 |
| Principle of Physics | optical and ultrasonics |
| Application | Detection of non-transparent labels Detection of transparent labels |
| Label width, min. | 4 mm ultrasonics / 2 mm optical |
| Label gap, min. | 2 mm |
| Medium | Transparent and not transparent |
| Special version | ALC function (tracking) Manual fine-tuning of the switching threshold Teach input Warning output easyTeach function |
| Light source | LED LED, Infrared |
| Wavelength | 850 nm |
| Transmitted-signal shape | Pulsed |
| LED Group | Exempt group (in acc. with EN 62471) |
| Supply voltage UB | 18 … 30 V DC |
| Open-circuit current | 0 … 80 mA, Typical value |
| Number of teach inputs | 1 Piece(s) |
| Type | Teach input |
| Voltage type | DC |
| Switching voltage | high: ≥9V low: ≤ 2 V |
| Input resistance | 15,000 Ω |
| Active switching state | High |
| Number of digital switching outputs | 2 Piece(s) |
| Type | Digital switching output |
| Voltage type | DC |
| Switching current, max. | 100 mA |
| Switching voltage | high: ≥(UB-2V) low: ≤ 2 V |
| Load capacity | 0.01 µF |
| Switching element | Transistor, Push-pull |
| Switching(Output 1) principle | IO-Link / PNP light switching (switching in the gap), NPN dark switching (switching on the label) |
| Switching(Output 2) principle | active low (normal operation high, event case low) |
| Switching frequency | 2,000 Hz, ultrasonics / 9061 Hz optical |
| Response time | 0.2 ms, ultrasonics / 0.05 ms optical |
| Readiness delay | 300 ms |
| Max. Bandgeschwindigkeit beim Teach-In | 50 m/min |
| Type | IO-Link |
| COM mode | COM3 |
| Profile | Smart sensor profile |
| Min. cycle time | COM3 = 0.5 ms |
| Frame type | 2.5 |
| Specification | V1.1 |
| Device ID | 2500 |
| SIO-mode support | Yes |
| Number of connections | 1 Piece(s) |
| Function | Signal IN Signal OUT Voltage supply |
| Type of connection | Connector |
| Thread size | M12 |
| Type | Male |
| Material | Metal |
| No. of pins | 5 -pin |
| Encoding | A-coded |
| Plug outlet | Vertical (perpendicular to belt movement) |
| Design | Fork |
| Mouth width | 4 mm |
| Mouth depth | 80 mm |
| Dimension (W x H x L) | 22 mm x 46.9 mm x 96 mm |
| Housing material | Metal |
| Metal housing | Diecast zinc, galvanic nickel coating |
| Net weight | 270 g |
| Housing color | Silver |
| Type of fastening | Mounting thread Through-hole mounting |
| Type of display | LED |
| Number of LEDs | 6 Piece(s) |
| Operational controls | Control buttons |
| The function of the operational control | Dynamic teach on label carrier and label |
| Ambient temperature, operation | 0 … 60 °C |
| Ambient temperature, storage | -40 … 70 °C |
| Degree of protection | IP 65 |
Product Documentation: GSX14E/LWT.3-M12V
Related Products: GSX14E/LWT.3-M12V
GS 63B/6D – 50128006
Label Gap Sensor, Model No: GS 63B/6D, Part Number: 50128006, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
GS 61/6.2 – 50110767
Leuze Label Gap Sensor, Model No: GS 61/6.2, Part Number: 50110767, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
GS 63B/6,200-S12 – 50128002
Label Gap Sensor, Model No: GS 63B/6,200-S12, Part Number: 50128002, Series: Fork type GS 63, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Light source: Infrared LED, Supply voltage: 10 to 30 VDC, Connection: Cable with Connector, Cable length: 200 mm, Thread size: M12, Number of pins: 5-pin.

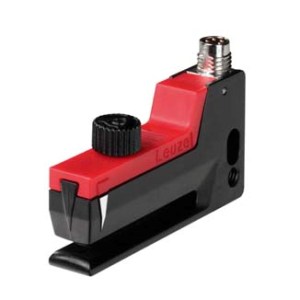

GS 61/6-S8V – 50110112
Leuze Label Gap Sensor, Model No: GS 61/6-S8V, Part Number: 50110112, Series: Fork type GS 61, Principle of physics: Optical Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GS 61/6D – 50110770
Label Gap Sensor, Model No: GS 61/6D, Part Number: 50110770, Series: Fork type GS 61, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Cable type, Cable length: 2000 mm, Number of conductors: 5 -wire.
GSU12/6G.3-M8 – 50145981
Leuze Label Gap Sensor, Model No: GSU12/6G.3-M8, Part Number: 50145981, Series: Fork type GS 12, Principle of physics: Ultrasonic Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GS 63B/66.3-S8 – 50143910
Leuze Label Gap Sensor, Model No: GS 63B/66.3-S8, Part Number: 50143910, Series: Fork type GS 63, Principle of physics: Optical Fork Sensor, Label width: 2 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M8, Number of pins: 4-pin.
GSU14E/LGT.3-M12V – 50142876
Leuze Label Sensor, Model No: GSU14E/LGT.3-M12V, Part Number: 50142876, Series: Fork type GS 14, Principle of physics: Ultrasonic Fork Sensor, Label width: 4 mm, Label gap: 2 mm, Supply voltage: 18 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GSU 14D/66D.31-S12 – 50126783
Label Gap Sensor, Model No: GSU 14D/66D.31-S12, Part Number: 50126783, Series: Fork type GS 14, Principle of physics: Ultrasonic Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 12 to 30 VDC, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
GK 14/24 L – 50026371
Label Gap Sensor, Model No: GK 14/24 L, Part Number: 50026371, Series: Fork type GK 14, Principle of physics: Capacitive Fork Sensor, Label width: 10 mm, Label gap: 2 mm, Supply voltage: 10 to 30 VDC, Light source: Infrared LED, Connection: Connector type, Thread size: M12, Number of pins: 5-pin.
IndMALL is offering the Leuze GSX14E/LWT.3-M12V model is an ultrasonic & optical forked sensor that belongs to the GS 14 series, with part number 50142866. This sensor is designed to detection of transparent and detection of non-transparent labels, with a minimum label width of 4 mm for ultrasonic and 2 mm for optical, and a label gap of 2 mm. It uses an LED light source with a wavelength of 850 nm and a pulsed transmitted signal shape. The GSX14E/1WT.3-M12V sensor requires a supply voltage within the range of 18 to 30 V DC and has a maximum open-circuit current of 80 mA.
This Leuze GSX14E LWT 3 M12V sensor has several features, including manual fine-tuning of the switching threshold, a teach input, warning output, and an easyTeach function. It also has an ALC function for tracking, with a single teach input and a high switching voltage of ≥9V and low switching voltage of ≤ 2 V. The Leuze GSX14E/LWT.3-M12V model has two digital switching outputs with a maximum switching current of 100 mA and a load capacity of 0.01 µF.
This sensor has a fork-type design with a mouth width of 4 mm and a mouth depth of 80 mm. It uses a connector type M12, with a male type and 5-pin encoding. The Leuze GSX14E/LWT.3-M12V ultrasonic fork sensor has diecast zinc housing with a galvanic nickel coating, making it durable and suitable for various environments. It also has a degree of protection from IP 65, meaning it is protected against dust and low-pressure water jets.
Other features of the Leuze GSX14E LWT 3 M12V model include an LED display with six LEDs and control buttons for operational control. This sensor can operate in temperatures ranging from 0 to 60 °C and can be stored in temperatures ranging from -40 to 70 °C. Overall, the Leuze GSX14E-LWT.3-M12V Optical Fork Sensor is a versatile sensor with several advanced features, making it suitable for various label detection applications.
