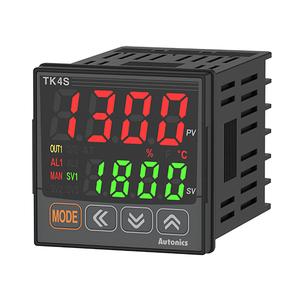

Autonics TK4S-B4CR Temperature Controller
The Autonics TK4S-B4CR Temperature Controller offers ON/OFF, P, PI, PD, PID control method, 100-240VAC~ 50/60Hz power supply, 4-digit 7-segment LED, 50ms. Manufactured by Autonics under the Autonics Temperature Controller category, this model belongs to the TK Series.
| Brand | Autonics |
| Product Type | Temperature Controller |
| Model Number | TK4S-B4CR |
Autonics TK4S-B4CR Temperature Controller β Technical Specifications
| Specification | Value |
|---|---|
| Power supply | 100-240VAC~ 50/60Hz |
| Sampling cycle | 50ms |
| Display method | 4-digit 7-segment LED |
| Control method | ON/OFF, P, PI, PD, PID |
| Proportional band | 0.1 to 999.9β/β(0.1 to 999.9%) |
| Integral time | 0 to 9999 sec |
| Derivative time | 0 to 9999 sec |
| Control period | Relay output, SSR drive output: 0.1 to 120.0 sec Current output or SSR drive output selectable: 1.0 to 120.0 sec |
| Manual reset | 0.0 to 100.0% |
| Environment_Ambient temperature | -10 to 50β, storage: -20 to 60β |
| Environment_Ambient humidity | 35 to 85% RH, storage: 35 to 85% RH |
| Insulation type | Double insulation or reinforced insulation(mark: @(INS), dielectric strength between the measuring input part and the power part: 2kV) |
| Option input | CT, Digital(DI-1) |
| Protection structure | IP65(front panel) |
| Display accuracy_CT input | Β±5% F.S. Β±1-digit |
| Input specification | Thermocouple: K(CA), J(IC), E(CR), T(CC), B(PR), R(PR), S(PR), N(NN), C(TT), G(TT), L(IC), U(CC), Platinel IIRTD: DPt100Ξ©, DPt50Ξ©, JPt100Ξ©, Cu100Ξ©, Cu50Ξ©, Nikel 120Ξ©Analog: 0-100mV, 0-5V, 1-5V, 0-10V0-20mA, 4-20mA |
| Option output | Alarm 1/2, RS485 comm. |
| Display accuracy_RTD | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Display accuracy_Thermocouple | β’At room temperature(23βΒ±5β):(PV Β±0.3% or Β±1β, select the higher one) Β±1-digitβ’Out of room temperature:(PV Β±0.5% or Β±2β, select the higher one) Β±1-digit |
| Hysteresis(adjustable sensitivity) | RTD/Thermocouples: 1 to 100β/β(0.1 to 100.0β/β) variable Analog: 1 to 100-digit |
| Control output 1 | Current(DC0/4-20mA) or SSR drive(11VDC @(=)) [ON/OFF] |
| Display accuracy_Analog | β’At room temperature(23βΒ±5β): Β±0.3% F.S. Β±1-digitβ’Out of range of room temperature: Β±0.5β% F.S. Β±1-digit |
| Control output 2 | Relay(250VAC~ 3A) |
| Weight | Approx. 150g(approx. 105g) |
The Autonics TK4S-B4CR Temperature Controller is built for reliability, operating on 100β240VAC with a fast 50ms sampling cycle. As part of the High Performance PID Temp Controllers range, it supports ON/OFF, P, PI, PD, and PID modes for versatile control. With inputs for thermocouples, RTDs, and analog signals, plus dual outputs including SSR drive and relay, the TK4S-B4CR ensures accurate and safe regulation. IP65 front protection, Β±0.3% accuracy, and reinforced 2kV insulation make it a trusted Autonics TK4S device. Documentation such as the TK4S-B4CR Manual and Autonics TK4S Datasheet provide complete technical details for setup and operation.
Widely used in molding machines, ovens, packaging equipment, drying systems, and laboratory setups, the TK4S-B4CR Temperature Controller delivers stable performance across industries. Its clear LED display enhances operator efficiency, while its PID tuning adapts to varying load conditions. Engineers rely on this TK4S Autonics Controller for its compact design, real-time accuracy, and easy integration into both new and retrofit panels. For training environments, it also demonstrates PID control concepts effectively.
The Autonics TK4S-B4CR Temperature Controller is valued by engineers, OEMs, and maintenance teams for its durability, flexibility, and process reliability. Available through wholesalers, dealers, and distributors, this High Performance PID Temp Controller is designed for demanding automation applications. References like the TK4S-B4CR Manual ensure seamless installation, while the Autonics TK4S Datasheet provides in-depth specifications. For technical documentation and genuine sourcing, visit the official Autonics Temperature Controller page.
