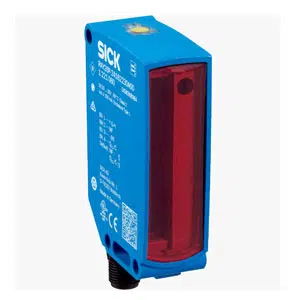

Sick RAY26P-34862930A00 Photoelectric Sensor
The Sick RAY26P-34862930A00 Photoelectric Sensor offers a Autocollimation, Reflex Array, Rectangular design, 0 m ... 4.5 m sensing range, PinPoint LED light source, PNP output, and Cable with M12 male connector, 4-pin, 270 mm connection. Manufactured by Sick under the Sick Photoelectric Sensor category, this model belongs to the RAY26 Reflex Array Series.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | RAY26P-34862930A00 |
Sick RAY26P-34862930A00 Photoelectric Sensor โ Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Autocollimation, Reflex Array |
| Dimensions (W x H x D) | 24.6 mm x 82.5 mm x 53.3 mm |
| Housing design (light emission) | Rectangular |
| Minimum object size | 10 mm, position-independent detection within the light array |
| Detection height | 55 mm |
| Sensing range max. | 0 m ... 4.5 m |
| Distance of the sensor to reflector | โฅ 0 m |
| Conveyor belt suppression | Manual |
| Type of light | Visible red light |
| Light source | PinPoint LED |
| Light spot size (distance) | 55 mm x 9 mm (1 m) |
| Wave length | 635 nm |
| Adjustment | BluePilot: Teach-in, IO-Link |
| Pin 2 configuration | External Input (test), Teach-in, switching signal |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 25 mA, 40 mA 2) |
| Switching Output | PNP |
| Output: QL1 / C | Switching output or IO-Link mode |
| Output function | Factory setting: Pin 2 / white (MF): PNP normally open (dark switching), Pin 4 / black (QL1 / C): PNP normally closed (light switching), IO-Link |
| Switching mode | Light/dark switching |
| Switching mode selector | Via IO-Link |
| Signal voltage PNP HIGH/LOW | Approx. VS โ 2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | - |
| Output current Imax. | โค 100 mA |
| Response time | โค 3 ms |
| Switching frequency | 170 Hz |
| Connection type | Cable with M12 male connector, 4-pin, 270 mm |
| Cable material | PVC |
| Protection class | III |
| Housing material | Plastic, VISTALยฎ |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66, IP67 |
| Ambient operating temperature | โ40 ยฐC ... +60 ยฐC 12) 1 |
| Ambient temperature, storage | โ40 ยฐC ... +75 ยฐC |
| Weight | 100 g |
IndMALL Automation Dealing offers Sick 53.3 m Reflex Array Sensor RAY26P-34862930A00 part no: 1121370 at unbeatable prices. The Main Technical Parameters of RAY26P-34862930A00, 1121370 feature Photoelectric retro-reflective sensor, Autocollimation, Reflex Array, 24.6 mm x 82.5 mm x 53.3 mm dimensions, Rectangular housing design , 55 mm detection height, 0 m ... 4.5 m sensing range, Visible red light, PinPoint LED light source, 55 mm x 9 mm (1 m) light spot size, 635 nm wave length, 10 V DC ... 30 V DC supply voltage, < 5 Vpp ripple, 25 mA, 40 mA current consumption, PNP output, Switching output or IO-Link mode , Light/dark switching, โค 3 ms response time, 170 Hz frequency, PVC Cable with M12 male connector, 4-pin, 270 mm , IP66, IP67 Enclosure rating. Take the First Step with a Quote for your requirement of Sick 53.3 m Reflex Array Sensor. Choose us for unparalleled pricing and support over other Dealers & Distributors.
