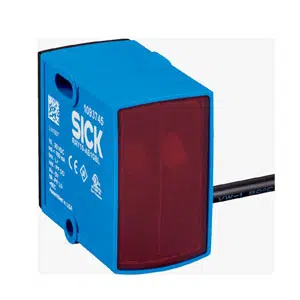

Sick RAY10-AT4CBL Photoelectric Sensor
The RAY10-AT4CBL Sick Reflex Array Photoelectric Sensor detects 5 mm objects across a 25 mm uniform light array.
This SICK model belongs to the SICK Photoelectric Sensor range and SICK RAY10 Reflex Array series, providing 0 m to 1.5 m sensing.
RAY10-AT4CBL, Part No. 1102079, provides push-pull PNP/NPN output, visible red PinPoint LED light, 0.5 ms response time, cable with M12 connector, and IP67 protection.
| Brand | Sick |
| Product Type | Photoelectric Sensor |
| Model Number | RAY10-AT4CBL |
Sick RAY10-AT4CBL Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Functional principle | Photoelectric retro-reflective sensor |
| Functional principle detail | Dual lens, Reflex Array |
| Dimensions (W x H x D) | 21.5 mm x 36 mm x 37.7 mm |
| Housing design (light emission) | Rectangular |
| Minimum object size | 5 mm, position-independent detection within the light array |
| Detection height | 25 mm |
| Sensing range max. | 0 m ... 1.5 m |
| Distance of the sensor to reflector | 0.3 m ... 1.5 m |
| Conveyor belt suppression | - |
| Type of light | Visible red light |
| Light source | PinPoint LED 2) |
| Light spot size (distance) | 37 mm x 12 mm (1 m) |
| Wave length | 635 nm |
| Adjustment | Potentiometer |
| Pin 2 configuration | - |
| Supply voltage UB | 10 V DC ... 30 V DC |
| Ripple | < 5 Vpp |
| Current consumption | 30 mA 2) |
| Switching Output | Push-pull: PNP/NPN |
| Output: QL1 / C | - |
| Output function | Alarm/Health output (Pin 2) |
| Switching mode | Light switching |
| Switching mode selector | - |
| Signal voltage PNP HIGH/LOW | Approx. VS – 2.5 V / 0 V |
| Signal voltage NPN HIGH/LOW | Approx. VS / < 2.5 V |
| Output current Imax. | ≤ 100 mA |
| Response time | ≤ 0.5 ms |
| Switching frequency | 1,000 Hz |
| Connection type | Cable with M12 male connector, 4-pin, 300 mm |
| Cable material | PVC |
| Protection class | III |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66, IP67 |
| Ambient operating temperature | –40 °C ... +60 °C 11) |
| Ambient temperature, storage | –40 °C ... +70 °C |
| Weight | 130 g |
The RAY10-AT4CBL Sick Reflex Array Photoelectric Sensor is a SICK retro-reflective sensor for object detection in industrial automation. It provides a 0 m to 1.5 m sensing range, detects objects as small as 5 mm, uses a 25 mm detection height, and provides a push-pull PNP/NPN output. The RAY10-AT4CBL belongs to the SICK RAY10 Reflex Array series and uses visible red PinPoint LED light with a 0.5 ms response time.
The RAY10-AT4CBL Sick Reflex Array Photoelectric Sensor can be used on conveyors, packaging machines, automated production lines, and assembly systems. Its 25 mm uniform light array supports position-independent detection of small, flat, transparent, or perforated objects within the sensing area. Push-pull switching supports automatic PNP or NPN operation, while the 0.5 ms response time supports rapid detection. The M12 connection supports integration into industrial automation systems.
SICK RAY10-AT4CBL, Part No. 1102079, combines Reflex Array sensing, visible red PinPoint LED illumination, push-pull switching, and an M12 cable connection. The sensor carries an IP67 enclosure rating and uses a rugged plastic housing for industrial environments. As part of the SICK RAY10 Reflex Array range, this model is suited to conveyor, packaging, assembly, and automation applications requiring position-independent detection across a 25 mm light array.
