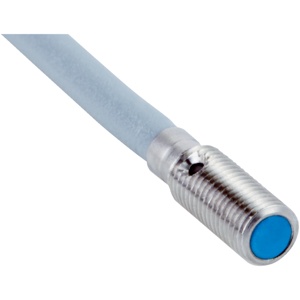

Home Sick Proximity Sensor IM04-01BPSVR8K Sick IM04-01BPSVR8K Proximity Sensor The Sick IM04-01BPSVR8K Proximity Sensor offers a Metric; Short-body , 1 mm sensing range, Flush installation type, PNP NO output, and Cable with connector M8, 3-pin, 0.2 m 1) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IM Series.
Brand Sick Product Type Proximity Sensor Model Number IM04-01BPSVR8K
Sick IM04-01BPSVR8K Proximity Sensor – Technical Specifications Specification Value Housing Metric; Short-body Thread size M4 x 0.5 Diameter Ø 4 mm Sensing range Sn 1 mm Safe sensing range Sa 0.81 mm Installation type Flush Switching frequency 8,000 Hz Connection type Cable with connector M8, 3-pin, 0.2 m 1) Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 2) Ripple ≤ 20 % 1) Voltage drop ≤ 2 V 2) Time delay before availability ≤ 10 ms Hysteresis 1 % ... 10 % Reproducibility ≤ 2 % 3) Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 100 mA Ambient operating temperature –25 °C ... +70 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, POM Housing length 12 mm Thread length 9 mm Tightening torque, max. ≤ 0.8 Nm Cable material PUR Conductor size 0.06 mm² Cable diameter Ø 2.6 mm
