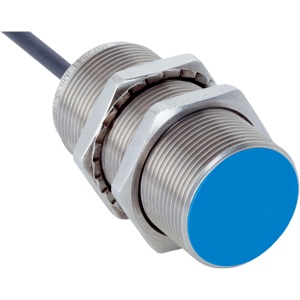

Home Sick Proximity Sensor IMB30-15BDSVU2S Sick IMB30-15BDSVU2S Proximity Sensor The Sick IMB30-15BDSVU2S Proximity Sensor offers a Metric; Standard design , 15 mm sensing range, Flush installation type, NO output, and Cable, 2-wire, 2 m connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMB Series.
Brand Sick Product Type Proximity Sensor Model Number IMB30-15BDSVU2S
Sick IMB30-15BDSVU2S Proximity Sensor β Technical Specifications Specification Value Housing Metric; Standard design Thread size M30 x 1.5 Diameter Γ 30 mm Sensing range Sn 15 mm Safe sensing range Sa 12.15 mm Installation type Flush Switching frequency 500 Hz Connection type Cable, 2-wire, 2 m Output function NO Electrical wiring DC 2-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP68 1)IP69K 2) Ripple β€ 10 % Voltage drop β€ 4 V 1)β€ 4.5 V 2) Time delay before availability β€ 100 ms Hysteresis 3 % ... 20 % Reproducibility β€ 2 % 3) 4) Temperature drift (of Sr) Β± 10 % Continuous current Ia β€ 100 mA Ambient operating temperature β40 Β°C ... +100 Β°C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 60 mm Thread length 55 mm Tightening torque, max. Typ. 100 Nm 5)Typ. 100 Nm 6) Protection class III Cable material PUR Conductor size 0.34 mmΒ² Cable diameter Γ 4.5 mm
