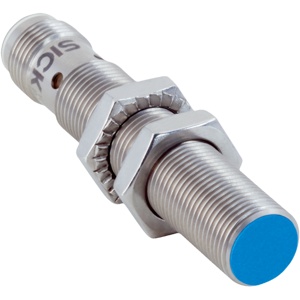

Home Sick Proximity Sensor IMB12-04BPSVC0SX01 Sick IMB12-04BPSVC0SX01 Proximity Sensor The Sick IMB12-04BPSVC0SX01 Proximity Sensor offers a Metric; Standard design , 4 mm sensing range, Flush installation type, PNP NO output, and Male connector M12, 4-pin 1) connection. Manufactured by Sick under the Sick Proximity Sensor category, this model belongs to the IMB Series.
Brand Sick Product Type Proximity Sensor Model Number IMB12-04BPSVC0SX01
Sick IMB12-04BPSVC0SX01 Proximity Sensor – Technical Specifications Specification Value Housing Metric; Standard design Thread size M12 x 1 Diameter Ø 12 mm Sensing range Sn 4 mm Safe sensing range Sa 3.24 mm Installation type Flush Switching frequency 2,000 Hz Connection type Male connector M12, 4-pin 1) Switching output PNP Output function NO Electrical wiring DC 3-wire Supply voltage 10 V DC ... 30 V DC Enclosure rating IP67 2) Ripple ≤ 10 % Voltage drop ≤ 2 V 1) Hysteresis 3 % ... 20 % Reproducibility ≤ 2 % 2) 3) Temperature drift (of Sr) ± 10 % Continuous current Ia ≤ 200 mA 4) No load current ≤ 10 mA Ambient operating temperature –20 °C ... +85 °C Housing material Stainless steel V2A, DIN 1.4305 / AISI 303 Sensing face material Plastic, LCP Housing length 65 mm Thread length 48 mm Tightening torque, max. Typ. 20 Nm 5)Typ. 32 Nm 6) Protection class III Cable material PUR Conductor size 0.34 mm² Cable diameter Ø 4.5 mm
