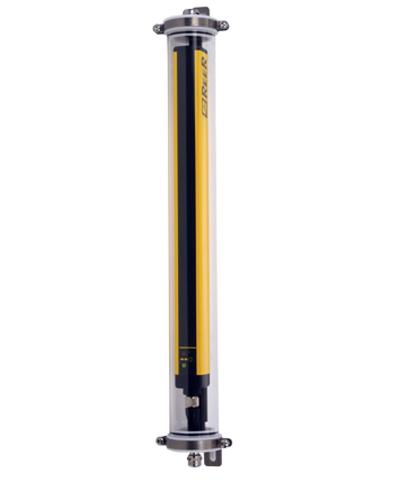

Reer EOS4 1651 X WTF Safety Light Curtain
The Reer EOS4 1651 X WTF Safety Light Curtain offers Type 4 - PL e safety level, 1660 mm protected height, 165 No.of beams, . Manufactured by Reer Safety under the Reer Safety Light Curtain category, this model belongs to the ES04 Series.
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 1660 |
| Number of beams | 165 |
Reer EOS4 1651 X WTF Safety Light Curtain – Technical Specifications
| Specification | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 1660 |
| Resolution (mm) | 14 |
| Max. Range (m) | 5 |
| Restart | Built-in - User selectable automatic or manual |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating Temperature (°C) | 0 ... 55 |
| Response Time (ms) | 4 |
| Number of Beams | 165 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | LEDs for light curtain's status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 3.48E-08 |
| Safety Outputs | 2 OSSD PNP (400 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Finger |
| Protective Enclosures | Food industry IP69K |
| Packaging Dimensions HxLxW (mm) | 145 x 1960 x 200 |
| Product Class | C |
| Power Supply (VDC) | 24 ± 20% |
| Overall Height (mm) | 1837 |
| Degree of Protection | IP69K |
| Fastening | Set of 4 ring brackets (included) |
| Special versions | Food and beverage. Watertight enclosure |
| Materials suitable for food applications | Yes |
| Max. water pressure (bar) | 80 . . . 100 |
| Gross Weight (g) | 8644.2 |
Reach Us by Email for Reer Safety for Food Industry EOS4 1651 X WTF part no: 1110051 at Discounted Rates. Key Technical Features of EOS4 1651 X WTF, 1110051 are 1660 protected height and a 14 resolution, ensuring precise detection. It operates at a 4 response time with a 5 range. The Emitter / Receiver pair meets Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 standards, with an operating temperature range of 0 ... 55. It includes LEDs for light curtain's status and diagnostics and uses . The device is IP69K rated for durability, with an overall length of 100. It has 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity, and ensuring precise Finger, detection. With IP69K, protection and flexible mounting options, it's designed for versatile use in industrial applications. Navigate Your Needs with a Quote for your requirement of Reer Safety for Food Industry. Our pricing and support are unrivaled, especially when compared to other Competitors.
