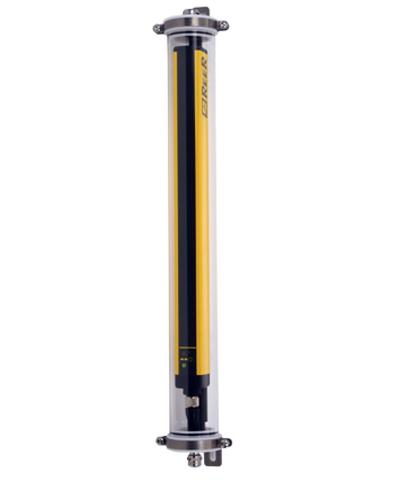

EOS4 1351 X WTF: 1110038 - Reer 1537 mm Height Safety Light Curtains
Technical Specifications of Reer 1537 mm Height Safety Light Curtains EOS4 1351 X WTF 1110038:
| Spec | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 1360 |
| Number of beams | 135 |
| Connections | Cable output |
Reer 1537 mm Height Safety Light Curtains: EOS4 1351 X WTF - 1110038
| Specification | Value |
|---|---|
| Safety Level | Type 4 - PL e |
| Protected Height (mm) | 1360 |
| Resolution (mm) | 14 |
| Controlled Height (mm) | 1350 |
| Max. Range (m) | 5 |
| Restart | Built-in - User selectable automatic or manual |
| Functioning System | Emitter / Receiver |
| Safety Level (SIL / PL) | Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 |
| Operating Temperature (°C) | 0 ... 55 |
| Response Time (ms) | 4 |
| Number of Beams | 135 |
| Max. Length of the Connection Cables (m) | 100 |
| Signalling | LEDs for light curtain's status and diagnostics |
| Safety Output Type | 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity |
| Connections | Cable output |
| MTTFD (ISO13849) years | 100 |
| PFHD (IEC 61508) | 2.98E-08 |
| Safety Outputs | 2 OSSD PNP (400 mA at 24 VDC) |
| Safety Functions | Integrated |
| Detection | Finger |
| Protective Enclosures | Food industry IP69K |
| Packaging Dimensions HxLxW (mm) | |
| Product Class | C |
| Power Supply (VDC) | 24 ± 20% |
| Overall Height (mm) | 1537 |
| Cross Section Dimensions (mm) | |
| Degree of Protection | IP69K |
| Fastening | Set of 4 ring brackets (included) |
| Master Slaves Models | |
| Special versions | Food and beverage. Watertight enclosure |
| Operating Range (m) | |
| Materials suitable for food applications | Yes |
| Diameter (mm) | 56 |
| Max. water pressure (bar) | 80 . . . 100 |
| Gross Weight (g) |
Please speak to our Technical Engineer for Reer 1537 mm Height Safety Light Curtains EOS4 1351 X WTF part no: 1110038 at attractive prices. Technical Specs Summary of EOS4 1351 X WTF, 1110038 includes 1360 protected height and a 14 resolution, ensuring precise detection. It operates at a 4 response time with a 5 range. The Emitter / Receiver pair meets Type 4 - SIL 3 - SILCL 3 - PL e - Cat. 4 standards, with an operating temperature range of 0 ... 55. It includes LEDs for light curtain's status and diagnostics and uses Cable output. The device is IP69K rated for durability, with an overall length of 100. It has 2 fail-safe PNP (400 mA at 24 VDC) with protection against short circuit. overload and reverse polarity, and ensuring precise Finger, detection. With IP69K, protection and flexible mounting options, it's designed for versatile use in industrial applications. Match Your Needs with a Quote for your requirement of Reer 1537 mm Height Safety Light Curtains. We lead with pricing that's more favorable and support that's more attentive than other Suppliers & Traders.
