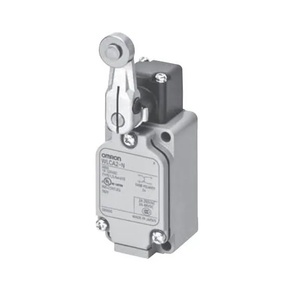

Omron WLCA2-LD-M1J-N Limit Switch
The Omron WLCA2-LD-M1J-N Limit Switch offers Roller lever: R38 mm actuator, Pre-wired connectors shape, . Manufactured by Omron under the Omron Limit Switch category, this model belongs to the WL Series.
| Brand | Omron |
| Product Type | Limit Switch |
| Product | WLCA2-LD-M1J-N |
Omron WLCA2-LD-M1J-N Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Actuator | Roller lever: R38 mm |
| Terminal shape | Pre-wired connectors |
| Pretravel (PT) | 15Β±5Β° |
| Connector shape | Threaded (M12) |
| Voltage | DC |
| Wiring locations | NO only |
| Connector pin No. | NO: 3, 4 |
| Rated frequency | 50/60 Hz |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Contact resistance | 25 mΞ© max. (initial value for the built-in switch) |
| Ambient temperature | -10 to +80Β°C (with no icing) |
| Ambient humidity | 35 to 95%RH |
| Vibration resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Destruction: 1,000 m/s2 min. Malfunction: 300 m/s2 min. |
| Degree of protection | IP67 |
The Omron WLCA2-LD-M1J-N is a precision-built limit switch equipped with a roller lever actuator (R38 mm) and a pre-wired M12 threaded connector for fast, secure wiring. It features NO-only contact configuration (NO: 3, 4) and supports both AC and DC applications. Designed for long service life and reliable mechanical actuation, the switch operates at speeds suited to automated machine movements and maintains high sensitivity within a pretravel range of 15Β±5Β°.
This model offers excellent electrical insulation with 100 MΞ© minimum resistance and maintains a low initial contact resistance of 25 mΞ©. It performs reliably across temperatures from β10Β°C to +80Β°C and up to 95% relative humidity. With high resistance to vibration (10β55 Hz) and shock (1,000 m/sΒ² destruction), the WLCA2-LD-M1J-N is suitable for factory automation, safety stops, and mechanical positioning systems. The housing is fully sealed to meet stringent IP67 protection standards.
