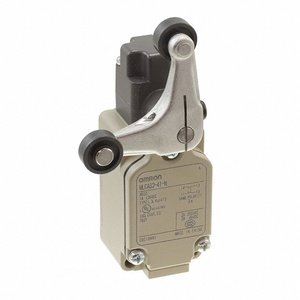

Omron WLCA32-41-N Limit Switch
Omron WLCA32-41-N is a WL Series limit switch with a Fork Lock Lever A actuator, screw terminals, and a G½ conduit. It is supplied without an operation indicator and has a 55° maximum pretravel. IP67 protection is specified, together with 25 mΩ maximum initial contact resistance. The WLCA32-41-N belongs to the WL Series within the fork lock lever limit switch range from Omron. Its Fork Lock Lever A actuator, G½ screw-terminal connection, no-indicator configuration, and 55° maximum pretravel are the primary model attributes. These details distinguish WLCA32-41-N from other WL lever and plunger configurations using different actuator forms.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | WLCA32-41-N |
Omron WLCA32-41-N Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Terminal Shape | Screw terminals (Conduit size: G½) |
| Pretravel Pt | 55° max. |
| Indicator | Without operation indicator |
| Ambient Temperature | -10 to +80°C (with no icing) |
| Ambient Humidity | 35 to 95%RH |
| Shock Resistance | Destruction: 1,000 m/s2 min. Malfunction: 300 m/s2 min. |
| Degree Of Protection | IP67 |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Actuator | Fork Lock Lever A |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Contact Resistance | 25 mΩ max. (initial value for the built-in switch) |
| Rated Frequency | 50/60 Hz |
The Omron WLCA32-41-N Limit Switch uses a Fork Lock Lever A actuator with screw terminals and a G½ conduit. The model is specified without an operation indicator, and maximum pretravel is 55°. IP67 protection is listed, while insulation resistance is 100 MΩ minimum at 500 VDC and initial contact resistance is 25 mΩ maximum. Operating temperature ranges from -10 to 80°C with no icing, and relative humidity is 35 to 95%. Frequency is specified at 50/60 Hz. These values provide the main supporting electrical and environmental specifications around the fork-lock-lever configuration.
Malfunction vibration resistance covers 10 to 55 Hz at 1.5 mm double amplitude. Destructive shock resistance is 1,000 m/s² minimum and malfunction shock resistance is 300 m/s² minimum. The strongest product terms are WL Series, Fork Lock Lever A, G½ screw terminals, 55° maximum pretravel, no operation indicator, IP67 protection, 25 mΩ initial contact resistance, and 100 MΩ insulation resistance. The source does not list a separate current rating or contact form for WLCA32-41-N, so those values are not inferred from other WL products. This combination keeps the product page focused on its actual actuator, connection, travel, indicator, and protection specifications. For another WL Series fork-lock-lever model page with screw-terminal construction, see WLCA32-43-N.
