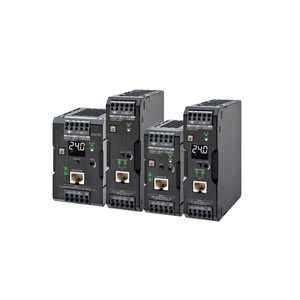

Omron S8VK-X06024-EIP Power Supply
Omron S8VK-X06024-EIP SMPS is a 60 W switch mode power supply designed to deliver 24 VDC with 2.5 A rated output current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting for integration with other electrical control components. Push-In Plus terminals and terminal blocks provide fixed wiring points for the input and output circuits. Typical efficiency is specified at 85% with 115 VAC input and 86% with 230 VAC input. A green LED provides output status indication. Its 24 VDC output and 2.5 A current rating define this 60 W configuration. Within the S8VK-X Series, the S8VK-X06024-EIP provides a DIN rail 60 W, 24 VDC configuration. Compare other 24V industrial SMPS models from Omron industrial controls.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8VK-X06024-EIP |
Omron S8VK-X06024-EIP Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 60 W |
| Output voltage | 24 VDC |
| Rated output current | 2.5 A |
| Terminal type | Push-in plus Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 85% typ. (at 115 VAC input) 86% typ. (at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 1.1 A typ. (at 115 VAC input) 0.67 A typ. (at 230 VAC input) |
| Input Leakage current | 0.5 mA max. (at 115 VAC input) 1 mA max. (at 230 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (LED: Green) |
| Output voltage variable range | 21.6 to 28 V (With V.ADJ) |
| Start-up time | 1000 ms max. (at 115 VAC input) 1000 ms max. (at 230 VAC input) |
| Hold time | 20 ms typ. (at 115 VAC input) 110 ms typ. (at 230 VAC input) |
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | ?40 to 70°C |
| Ambient temperature (Storage) | ?40 to 85°C |
| Ambient humidity (OperatingStorage) | 95% max. (Storage humidity: 95% max.) |
| Cooling fan | No |
| Degree of protection | IP20 by EN/IEC 60529 |
| Weight | 250 g max. |
The Omron S8VK-X06024-EIP Power Supply provides 60 W rated power with a 24 VDC output and 2.5 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with Push-In Plus terminals and terminal blocks for cabinet installation. Typical efficiency is specified at 85% with 115 VAC input and 86% with 230 VAC input. These specifications define a 24 VDC supply where connected equipment voltage, current demand, incoming source, DIN rail space, and terminal access should be checked before installation. Connected loads should require 24 VDC and keep their combined continuous current within the rated 2.5 A output.
Comparison with other S8VK-X models should first retain the required 24 VDC output and then consider available current and rated wattage. Increasing from 60 W to 90 W raises the available current while keeping the nominal output voltage unchanged. This allows model selection to follow actual load demand rather than wattage alone. For a higher-capacity 24 VDC configuration providing 3.75 A, compare the Omron S8VK-X09024-EIP.
