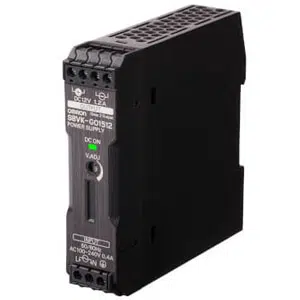

Omron S8VK-G01512 Power Supply
The Omron S8VK-G01512 Power Supply offers a 15 W power rating, 12 VDC output voltage, and 1.2 A rated current. This compact SMPS Power Supply is built for DIN track mounting installation and features Rod terminal to ensure safe and stable wiring connections. Designed for a wide input range of 85 to 264 VAC (90 to 350 VDC) at 50/60 Hz, it delivers stable DC output with built-in overload, overvoltage, and short-circuit protection. LED status indicators and a space-saving metal housing support high uptime in control panels and factory automation systems. Manufactured by Omron, part of the Omron Power Supply range of Switch Mode Power Supplies, available under the Omron S8VK Series.
| Brand | Omron |
| Product Type | Power Supply |
| Model Number | S8VK-G01512 |
Omron S8VK-G01512 Power Supply β Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 15 W |
| Output voltage | 12 VDC |
| Rated output current | 1.2 A |
| Terminal type | Rod terminal |
| Mounting method | DIN track mounting |
| Construction | Covered type |
| Connection | Terminal blocks |
| Efficiency | 80% Typ. (at 100 VAC input)79% typ. (at 200 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 0.35 A typ. (at 100 VAC input)0.25 A typ. (at 200 VAC input) |
| Input Leakage current | 0.5 mA max. (at 100 VAC input)1.0 mA max. (at 200 VAC input) |
| Input Frequency | 50/60Hz (47 to 450 Hz) |
| Output indicator | Yes (color: green, lighting from 80 to 90% or more of rated voltage) |
| Output voltage variable range | -10 to +15% With V.ADJ |
| Maximum peak current | 1.44 A |
| Start-up time | 600 ms typ. (at 100 VAC input)400 ms typ. (at 200 VAC input) |
| Hold time | 20 ms typ. (at 100 VAC input)100 ms typ. (at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 0.375 mm Single amplitude in every 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -40 to 70 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -40 to 85 β (with no freezing or condensation) |
| Ambient humidity (OperatingStorage) | 95% max. |
| Cooling fan | Cooling fan No |
| Degree of protection | IP20, EN/IEC 60529 |
| Weight (Main) | 150 g max. |
The Omron S8VK-G01512 is a Switch Mode Power Supply designed for stable DC power delivery in control panels and automation equipment. It belongs to the Omron SMPS family and is typically evaluated together with related models such as Omron S8VK-G01505 (15 W, 5 VDC, 3 A, Rod terminal, DIN track mounting), Omron S8VK-C24024 (240 W, 24 V, 10 A), and Omron S8VK-R20 (20 A) when engineers are standardising their switch mode power supply lineup. Looking at power rating, output voltage, rated output current, terminal type, phase, and mounting method helps engineers choose the most suitable Omron SMPS Power Supply for each cabinet or machine section. The S8VK-G01512 integrates cleanly on DIN rails or inside enclosures, feeding PLCs, I/O modules, sensors, and safety relays where a reliable Omron Switch Mode Power Supply with predictable protection and wiring behaviour is required in continuous industrial service.
