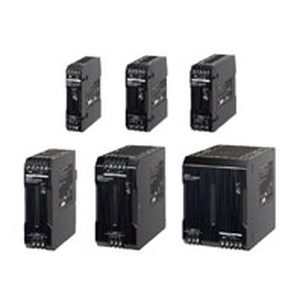

Omron S8VK-G06012 Power Supply
The Omron S8VK-G06012 Power Supply provides a 60 W DC power source with a 12 VDC output rated at 4.5 A for industrial machine and control-panel equipment. It supports single-phase 85 to 264 VAC or 90 to 350 VDC input at 50/60 Hz. DIN rail mounting allows the supply to be installed beside other rail-mounted control components, while screw terminals provide dependable input and output wiring connections. Its combination of 12 VDC output and 4.5 A capacity makes it suitable for compatible control loads requiring more power than lower-wattage S8VK configurations. The S8VK-G06012 belongs to the S8VK Series. It is positioned among other 60W industrial power supplies from Omron automation equipment for industrial control systems.
| Brand | Omron |
| Product | Power Supply |
| Model Number | S8VK-G06012 |
Omron S8VK-G06012 Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 60 W |
| Output voltage | 12 VDC |
| Rated output current | 4.5 A |
| Terminal type | Screw Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 85% |
| Rated input voltage | Single-phase, 85 to 264 VAC, 90 to 350 VDC |
| Rated input current | 1.0 A typ. (at 115 VAC input) 0.6 A typ. (at 230 VAC input) |
| Input Leakage current | 0.16 mA typ. (at 115 VAC input) 0.30 mA typ. (at 230 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (LED: Green) |
| Output voltage variable range | ?10% to 15% (with V. ADJ) |
| Start-up time | 570 ms typ. (at 115 VAC input) 430 ms typ. (at 230 VAC input) |
| Hold time | 26 ms typ. (at 115 VAC input) 139 ms typ. (at 230 VAC input) |
| Vibration resistance | 10 to 55 Hz, 0.375 mm half amplitude for 2 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, ±Z directions |
| Ambient temperature (Operating) | ?40 to 70°C |
| Ambient temperature (Storage) | ?40 to 85°C |
| Ambient humidity (OperatingStorage) | 0% to 95% (Storage humidity: 0% to 95%) |
| Cooling fan | No |
| Degree of protection | IP20 by EN/IEC 60529 |
| Weight | 260 g max. |
The Omron S8VK-G06012 is frequently assessed alongside related units in the Omron Switch Mode Power Supply range, as these SMPS models share comparable wiring behaviour, thermal characteristics, load endurance, and panel integration features. Engineers often evaluate related models such as Omron S8VK-X24024-EIP (240 W, 24 VDC, 10 A, DIN rail), Omron S8VK-G12024 (120 W, 24 VDC, 5 A, DIN rail) when configuring power rails for PLC racks, servo drives, motion assemblies, and distributed I/O terminals. Comparing specifications like power rating, output voltage behaviour, continuous output current, and mounting orientation helps maintain predictable voltage delivery across machinery with dynamic load patterns. The S8VK-G06012 fits smoothly into conveyors, dosing modules, electrical frames, and compact control panels where a dependable Omron SMPS Power Supply is required. These related SMPS variants also support unified wiring layouts, easier spare handling, and consistent power distribution across multi-panel automation systems.
