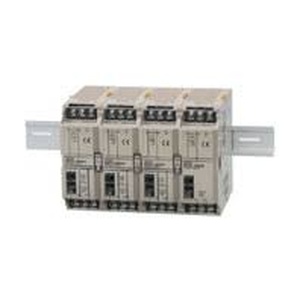

Omron S8TS-03012 Power Supply
The Omron S8TS-03012 Power Supply offers 30 W power rating, 12 VDC output voltage, and 2.5 A rated current. This reliable SMPS Power Supply is designed for DIN rail mounting and equipped with Screw Terminal for secure wiring connections. Operating on 100 to 240 VAC input voltage at 50/60Hz frequency, it ensures stable DC output and high efficiency. The modular design supports parallel operation, N+1 redundancy, and expansion units, providing flexibility for system integration and automation control panels. Manufactured by Omron, part of the Omron Power Supply lineup of Switch Mode Power Supplies, available under the Omron S8TS Series.
| Brand | Omron |
| Product Type | SMPS |
| Model Number | S8TS-03012 |
Omron S8TS-03012 Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 30 W |
| Output voltage | 12 VDC |
| Connection | Terminal blocks |
| Terminal type | Screw Terminal |
| Mounting | DIN rail |
| Efficiency | 73% typ. (at 100 VAC input) 73% typ. (at 200 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Input Frequency | 50/60Hz |
| Rated input current | 0.7 A max. (at single operation, 100 VAC input) 0.4 A max. (at single operation, 200 VAC input) |
| Input Leakage current | 0.35 mA max. (at 100 VAC input) 0.7 mA max. (at 240 VAC input) |
| Rated output current | 2.5 A |
| Output voltage variable range | Β±10% (With V.ADJ) |
| Start-up time | 1000 ms typ. (at 100 VAC input) 1000 ms typ. (at 200 VAC input) |
| Hold time | 20 ms min. (at 100 VAC input) 20 ms min. (at 200 VAC input) |
| Output indicator | Yes (color: green) |
| Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -10 to 50 β |
| Ambient temperature (Storage) | -25 to 65 β |
| Ambient humidity (OperatingStorage) | 25 to 85% |
| Cooling fan | No |
| Weight | 450 g max. |
The Omron S8TS-03012 is frequently evaluated with other models in the Omron Switch Mode Power Supply group, as these SMPS units share similar behaviour in thermal response, wiring layout, load handling, and rated input characteristics. Engineers often compare related models such as Omron S8TS-06024F-E1 (60 W, 24 VDC, 100 to 240 VAC, 2.5 A, DIN rail), Omron S8TS-03012F (30 W, 12 VDC, 100 to 240 VAC, 2.5 A, DIN rail), and Omron S8TS-06024 (60 W, 24 VDC, 100 to 240 VAC, 2.5 A, DIN rail) when designing power rails for automation cabinets, motion drives, PLC racks, or distributed I/O stations. Analysing differences in power rating, output voltage behaviour, mounting format, rated input voltage, and continuous output current helps ensure voltage stability under diverse machine loads. The S8TS-03012 integrates smoothly into conveyors, dosing modules, electrical frames, and industrial panels where a dependable Omron SMPS Power Supply is required.
