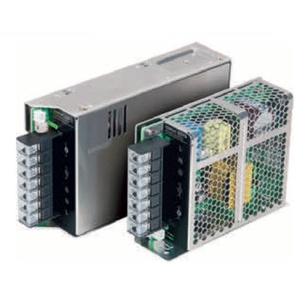

Omron S8FS-G30048CD Power Supply
Omron S8FS-G30048CD SMPS is a 300 W switch mode power supply designed to deliver 48 VDC with a rated output current of 7 A. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with screw terminals for structured electrical-panel installation. Typical efficiency is specified at 82% with 100 VAC input and 87% with both 200 VAC and 230 VAC input. The DIN rail arrangement combines the 48 VDC electrical requirement with organized cabinet mounting and fixed terminal wiring for input and output circuits. Within the S8FS-G Series, the S8FS-G30048CD provides a DIN rail 300 W, 48 VDC configuration. Compare other 300W 48V power supplies from Omron automation equipment.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8FS-G30048CD |
Omron S8FS-G30048CD Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 300 W |
| Output voltage | 48 VDC |
| Rated output current | 7 A |
| Terminal type | Screw Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 82 % typ.(at 100 VAC input) 87 % typ.(at 200 VAC input) 87 % typ.(at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 4.2 A typ.(at 100 VAC input) 2.1 A typ.(at 200 VAC input) |
| Input Leakage current | 0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10 to +15 % (With V.ADJ) |
| Start-up time | 1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input) |
| Hold time | 30 ms typ.(at 100 VAC input) 30 ms typ.(at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -20 to 70 ? |
| Ambient temperature (Storage) | -25 to 75 ? |
| Ambient humidity (OperatingStorage) | 90 %RH max. |
| Cooling fan | Yes |
| Weight | 700 g max. |
The Omron S8FS-G30048CD Power Supply provides 300 W rated power with a 48 VDC output and 7 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with screw terminals and terminal blocks for structured control-panel installation. Typical efficiency is specified at 82% with 100 VAC input and 87% with both 200 VAC and 230 VAC input. These electrical values define a DIN rail 48 VDC configuration where voltage compatibility, load current, incoming source, rail availability, and terminal access should be checked independently. Connected equipment should specifically require 48 VDC and keep combined current demand within the rated 7 A output. Rail space should therefore be confirmed during cabinet planning.
The incoming AC range describes the source side of the power supply and does not change the nominal 48 VDC requirement of connected loads. Screw terminals provide fixed points for input and output conductor wiring. A lower-power model with a different nominal voltage illustrates another capacity class but should not be treated as electrically interchangeable. For comparison with a 100 W DIN rail supply delivering 24 VDC at 4.5 A, compare the Omron S8FS-C10024D.
