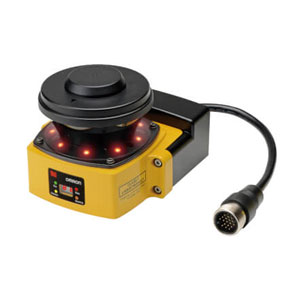

Omron OS32C-BP-DM Safety Laser Scanner
Omron OS32C-BP-DM is a Type 3 safety laser scanner with a maximum operating range of 3 m, designed for configurable machine guarding, access protection, and area monitoring. A 270° detection field provides wide coverage around equipment, while 0.4° angular resolution supports precise safety-zone definition. Minimum object resolution can be configured at 30, 40, 50, or 70 mm, and up to 70 monitoring-zone sets can combine one safety zone with two warning zones. Dual PNP OSSD outputs provide protective switching for PLd/Safety Category 3 applications, while auxiliary and warning outputs support status functions. The OS32C-BP-DM belongs to the OS32C Series within the laser safety scanner range from Omron automation safety products.
| Brand | Omron |
| Product | Safety Laser Scanner |
| Model Number | OS32C-BP-DM |
Omron OS32C-BP-DM Safety Laser Scanner - Technical Specifications
| Specification | Value |
|---|---|
| Max. Operating Range / Description | 3m |
| Sensor Type | Type 3 Safety Laser Scanner |
| Performance Level (PL)/ Safety Category | PLd/Safety Category 3 |
| Detection Capability | Configurable via the configuration tool; Non-transparent with a diameter of 30, 40, 50, 70mm (1.8% reflectivity or greater) (default: 70 mm) |
| Monitoring Zone | Monitoring Zone Set Count: (Safety Zone + 2 Warning Zones) x 70 sets |
| Operating Range | Safety Zone: 1.75 m (min. obj. resolution of 30 mm) 2.5 m (min. obj. resolution of 40 mm) 3.0 m (min. obj. resolution of 50 mm or 70 mm) Warning Zone: 10.0 m |
| Maximum Measurement Error | 100 mm (at range of 3 m or less); 110 mm (at distance greater than 3 m and up to 4m) |
| Detection Angle | 270° |
| Angular Resolution | 0.4° |
| Laser Beam Diameter | 6 mm at optics cover, 14 mm (typical) at 3 m. |
| Laser Scan Plane Height | 67mm from the bottom of the scanner |
| Response Time | Response time from ON to OFF: From 80 ms (2 scans) to 680 ms (up to 17 scans) *8 Response time from OFF to ON: Response time from ON to OFF + 100 ms to 60 s (Configurable) |
| Power Consumption | Normal operation: 5 W max; Standby mode: 3.75 W (without output load) |
| Safety Output (OSSD) | PNP transistor x 2, load current of 250 mA max., residual voltage of 2 V max.; load capacity of 2.2 µF max., leak current of 1 mA max. |
| Auxiliary Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Warning Output (Non-Safety) | NPN/PNP transistor x 1, load current of 100 mA max., residual voltage of 2 V max., leak current of 1 mA max. |
| Connection Type | Power Cable: 18-pin mini-connector (pigtail) Communication Cable: M12, 4-pin connector |
| Ambient Temperature | Operation: -10 to 50 °C, Storage: -25 to 70 °C |
| Ambient Humidity | Operation & Storage: 95% RH max., non-condensing |
| Insulation Resistance | 20 MΩ or higher (500 VDC) |
| Enclosure Rating | IP65 |
| Dimensions (WxHxD) | 133.0 x 104.5 x 142.7 mm (except cable) |
| Power Cable | Up to 30 m |
| Weight (Main Unit only) | 1.3 kg |
The Omron OS32C-BP-DM Safety Laser Scanner provides configurable machine guarding and area monitoring with a maximum safety-zone range of 3 m. Its 270° detection field gives broad coverage around machinery, while 0.4° angular resolution supports precise protective-zone boundaries. Minimum object resolution can be set to 30, 40, 50, or 70 mm, with the safety range reaching 1.75 m, 2.5 m, or 3.0 m according to the selected setting. Up to 70 monitoring-zone sets can combine one safety zone with two warning zones, helping the scanner adapt to different operating conditions or machine states.
The scanner is classified as Type 3 and supports PLd/Safety Category 3 applications with two PNP OSSD outputs for protective switching. Auxiliary and warning outputs provide additional status information. Configurable ON-to-OFF response time ranges from 80 to 680 ms, and normal operation is rated at up to 5 W. Connection uses an 18-pin power interface together with an M12 communication interface for system integration. The combination of a 3 m maximum range, multiple object-resolution settings, and configurable zone sets supports flexible safety layouts around industrial equipment and changing access conditions. For applications requiring a longer protective field while retaining a similar OS32C configuration, see the OS32C-BP-DM-4M model.
