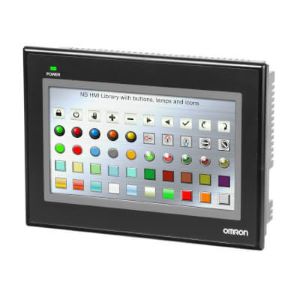

Omron NB5Q-TW00B Human Machine Interfaces
Omron NB5Q-TW00B is a 5.6-inch Human Machine Interface designed to present machine information through a 320 × 234 TFT LCD with 65,536 colors. Its touchscreen supports equipment status, operating parameters, alarms, and graphical controls from a dedicated operator panel. Backlight lifetime is specified at 50,000 hours, while power consumption is 6 W. Panel dimensions are 142 × 184 × 46 mm. Within the NB Series, the NB5Q-TW00B-V1 provides a 5.6-inch touchscreen configuration. For machine monitoring and operator interaction, explore industrial HMI panels available across Omron industrial automation.
| Brand | Omron |
| Product Type | Human Machine Interface |
| Model Number | NB5Q-TW00B |
Omron NB5Q-TW00B Human Machine Interfaces - Technical Specifications:
| Specification | Value |
|---|---|
| Screen Size | 5.6 inches |
| Resolution | 320x234 |
| Colors | 65,536 colors |
| Type of display | TFT LCD |
| Backlight Lifetime | 50,000 hours |
| Dimensions in mm (H × W × D) | 142 × 184 × 46 |
| Weight | 620 g max |
| Power Consumption | 6 W |
The Omron NB5Q-TW00B Human Machine Interface uses a 5.6-inch TFT LCD with 320 × 234 resolution and 65,536 colors. Its touchscreen provides a graphical interface for machine status, operating parameters, alarms, and control functions. Backlight lifetime is specified at 50,000 hours, while power consumption is 6 W. Panel dimensions are 142 × 184 × 46 mm. The 5.6-inch display provides a compact operator interface for industrial equipment requiring machine visualization and direct touchscreen operation.
The NB5Q-TW00B-V1 should be selected by considering its 5.6-inch screen size, 320 × 234 resolution, 65,536-color TFT LCD, panel dimensions, and 6 W power consumption. These specifications determine the available display area and installation requirement for the HMI. A related NB Series model is available with a 3.5-inch TFT LCD and 320 × 240 resolution when a smaller operator interface is required. For the related compact model, see Omron NB3Q-TW00B.
