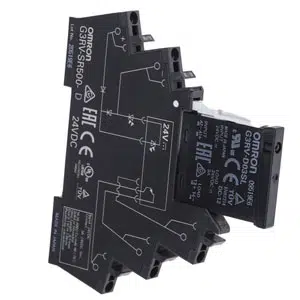

Omron G3RV-SR500-A DC24 Solid-state Relay
The Omron G3RV-SR500-A DC24 Solid-state Relay (SSR) delivers 24 VDC input, 5 to 24 VDC output, and 30 A (10 ms) load performance reliably. This relay features a Single-phase, 2-element structure with Photo volt coupler isolation, an Equipped zero-cross function for noise-free switching, and an Equipped operating indicator for real-time status monitoring. Its Push-In Plus Terminal Block socket simplifies installation, while 30 A (60 Hz 1 cycle) inrush current resistivity, it ensures stable operation across its 21.6 V max. input range. Manufactured by Omron and listed under Omron Solid State Relay solutions, this model belongs to the G3RV Series.
| Brand | Omron |
| Product Type | Solid State Relay |
| Model Number | G3RV-SR500-A DC24 |
Omron G3RV-SR500-A DC24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Product classification | Relay compatible Solid State Relay |
| Number of phases | Single-phase |
| Number of elements | 2 |
| Isolation method | Photo volt coupler |
| Zero cross function | Equipped |
| Operating indicator | Equipped |
| Terminal structure | Push-In Plus Terminal Block |
| Mounting | DIN track mounting,Screw mounting |
| Input Rated Voltage | 24 VDC |
| Input Operating voltage range | 21.6 V max. |
| Input current | DC: 9.0 mA |
| Input Operate voltage | 21.6 VDC max. |
| Input Release voltage | 1 VDC min. |
| Output Rated load voltage | 5 to 24 VDC |
| Output Load voltage range | 3 to 26.4 VDC |
| Output Minimum load current | 100 Β΅A to 3 A |
| Output Load Current | 30 A (10 ms) |
| Output Inrush current resistivity | 30 A (60 Hz 1 cycle) |
| Operate time | 10 Β΅A max. (at 24 VDC) |
| Release time | 1/2 cycle of load power source + 1 ms max. |
| Output ON voltage drop | Main circuit: 1.6 V max. (RMS) Alarm output: 1.8 V max. |
| Leakage current | Main circuit: 2 mA max. (at 200 VAC) Alarm output: 0.1 mA max. |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | 2500 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock resistance | 300 m/s 2 (DIN Track mounting) |
| Ambient temperature (Operating) | -30 to 80 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85% RH |
| Weight | Approx. 30 g |
