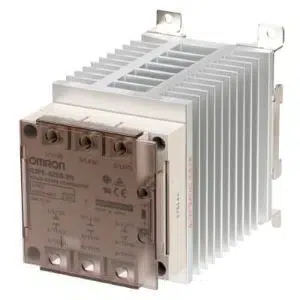

Omron G3PE-525B-3N DC12-24 Solid-state Relay
The Omron G3PE-525B-3N DC12-24 Solid-state Relay (SSR) delivers 12 to 24 VDC input, 200 to 480 VAC output, and 25 A (at 40 β) load performance reliably. This relay features a Three phase, 3-element structure with Phototriac isolation, an Equipped zero-cross function for noise-free switching, and an Equipped (Yellow) operating indicator for real-time status monitoring. Its Screw terminal socket simplifies installation, while 220 A (60 Hz 1 cycle) inrush current resistivity, it ensures stable operation across its 9.6 to 30 VDC input range. Manufactured by Omron and listed under Omron Solid State Relay solutions, this model belongs to the G3PE Series.
| Brand | Omron |
| Product Type | Solid State Relay |
| Model Number | G3PE-525B-3N DC12-24 |
Omron G3PE-525B-3N DC12-24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Product classification | For 3-phase Heater |
| Number of phases | Three phase |
| Number of elements | 3 |
| Isolation method | Phototriac |
| Zero cross function | Equipped |
| Operating indicator | Equipped (Yellow) |
| Terminal structure | Screw terminal |
| Mounting | DIN track mounting |
| Input Rated Voltage | 12 to 24 VDC |
| Input Operating voltage range | 9.6 to 30 VDC |
| Input current | 10 mA max. (at 24 VDC) |
| Input Operate voltage | 9.6 VDC max. |
| Input Release voltage | 1 VDC min. |
| Output Rated load voltage | 200 to 480 VAC |
| Output Load voltage range | 180 to 528 VAC |
| Output Minimum load current | 0.5 A |
| Output Load Current | 25 A (at 40 β) |
| Output Inrush current resistivity | 220 A (60 Hz 1 cycle) |
| Operate time | 1/2 cycle of load power source + 1 ms max. |
| Release time | 1/2 cycle of load power source + 1 ms max. |
| Output ON voltage drop | 1.8 V max. (RMS) |
| Leakage current | 20 mA max. (at 200 VAC) |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | 2500 VAC 50/60 Hz 1 min |
| Vibration resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.35 mm double amplitude) |
| Shock resistance | 294 m/s 2 (98 m/s 2 with reverse mounting) |
| Ambient temperature (Operating) | -30 to 80 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -30 to 100 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 45 to 85% RH |
| Weight | Approx. 1450 g |
