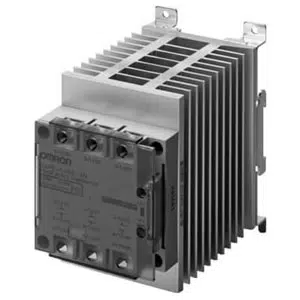

Omron G3PE-535B-3N DC12-24 Solid-state Relay
Omron G3PE-535B-3N DC12-24 is a three-phase G3PE solid state relay with three elements, phototriac isolation, and an equipped zero-cross function. Its rated input voltage is 12 to 24 VDC with a 9.6 to 30 VDC operating range and 10 mA max. input current at 24 VDC. The relay provides a 200 to 480 VAC rated output across a 180 to 528 VAC load voltage range. Output load current is specified as 35 A at 40°C, while inrush current resistivity reaches 440 A for one 60 Hz cycle. A yellow indicator, DIN track mounting, and screw terminals are listed. The G3PE-535B-3N DC12-24 belongs to the SSR range from Omron.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3PE-535B-3N DC12-24 |
Omron G3PE-535B-3N DC12-24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Three phase |
| Isolation Method | Phototriac |
| Mounting | DIN track mounting |
| Operating Indicator | Equipped (Yellow) |
| Terminal Structure | Screw terminal |
| Product Classification | For 3-phase Heater |
| Number Of Elements | 3 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 12 to 24 VDC |
| Input Current | 10 mA max. (at 24 VDC) |
| Input Operate Voltage | 9.6 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 200 to 480 VAC |
| Output Load Voltage Range | 180 to 528 VAC |
| Output Minimum Load Current | 0.5 A |
| Output Load Current | 35 A (at 40 ℃) |
| Output Inrush Current Resistivity | 440 A (60 Hz 1 cycle) |
| Operate Time | 1/2 cycle of load power source + 1 ms max. |
| Release Time | 1/2 cycle of load power source + 1 ms max. |
| Output On Voltage Drop | 1.8 V max. (RMS) |
| Leakage Current | 20 mA max. (at 480 VAC) |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 2500 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.35 mm double amplitude) |
| Shock Resistance | 294 m/s 2 (98 m/s 2 with reverse mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 1650 g |
The Omron G3PE-535B-3N DC12-24 Solid State Relay is distinguished in this G3PE group by its 35 A output load-current rating at 40°C and 440 A inrush current resistivity for one 60 Hz cycle. The relay has a three-phase, 3-element structure using phototriac isolation. Its output is rated from 200 to 480 VAC and operates within a 180 to 528 VAC load voltage range. Rated input voltage is 12 to 24 VDC with an operating range from 9.6 to 30 VDC. Input current is specified as 10 mA max. at 24 VDC, while input operate and release voltages are 9.6 VDC max. and 1 VDC min. respectively. It uses DIN track mounting, screw terminals, an equipped zero-cross function, and a yellow operating indicator.
Switching timing is listed as one-half cycle of the load power source plus 1 ms max. for both operate and release. Output ON voltage drop is 1.8 V max. RMS. Leakage current is specified as 20 mA max. at 480 VAC, while insulation resistance is 100 MΩ min. at 500 VDC. Dielectric strength reaches 2500 VAC at 50/60 Hz for 1 minute. Ambient operating temperature spans -30 to 80°C without freezing or condensation. A higher-current three-phase G3PE model in the supplied set is the G3PE-545B-3N DC12-24, which is listed at 45 A.
