Omron G3PF-225B Solid-state Relay
Omron G3PF-225B is a single-phase, 2-element solid state relay with phototriac isolation and a 12 to 24 VDC rated input. The input operates across 9.6 to 26.4 VDC, while its rated output voltage is 100 to 240 VAC with a 75 to 264 VAC load voltage range. Output load current is specified as 25 A at 25°C and output inrush current resistivity is 220 A for one 60 Hz cycle. The model supports DIN track or screw mounting and uses detachable screwless clamp terminals, a yellow operating indicator, and an equipped zero-cross function. The G3PF-225B belongs to the G3PF series within the Solid state relay lineup from Omron.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3PF-225B |
Omron G3PF-225B Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Single-phase |
| Isolation Method | Phototriac |
| Mounting | DIN track mounting,Screw mounting |
| Operating Indicator | Equipped (Yellow) |
| Terminal Structure | Screwless clamp terminals (detachable) |
| Product Classification | For Single-phase Heater |
| Number Of Elements | 2 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 12 to 24 VDC |
| Input Current | 5 mA max. (at 12 VDC) 10 mA max. (at 24 VDC) |
| Input Operate Voltage | 9.6 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 100 to 240 VAC |
| Output Load Voltage Range | 75 to 264 VAC |
| Output Minimum Load Current | 1.5 V max |
| Output Load Current | 25 A (at 25 ℃) |
| Output Inrush Current Resistivity | 220 A (60 Hz 1 cycle) |
| Operate Time | 1/2 cycle of load power source + 1 ms max. |
| Release Time | 1/2 cycle of load power source + 1 ms max. |
| Output On Voltage Drop | Main circuit: 1.6 V max. (RMS) Alarm output: 1.5 V max. |
| Leakage Current | Main circuit: 10 mA max. (at 200 VAC) Alarm output: 1 µA max. |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 2500 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock Resistance | 294 m/s 2 (DIN Track mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 400 g |
The Omron G3PF-225B Solid State Relay uses a single-phase, 2-element configuration with phototriac isolation and detachable screwless clamp terminals. It supports DIN track or screw mounting and includes an equipped zero-cross function plus a yellow operating indicator. Rated input voltage is 12 to 24 VDC and the specified operating range is 9.6 to 26.4 VDC. Input current is 5 mA max. at 12 VDC and 10 mA max. at 24 VDC, while input operate voltage is 9.6 VDC max. and release voltage is 1 VDC min. The output side is rated for 100 to 240 VAC across a 75 to 264 VAC load voltage range. Output load current is 25 A at 25°C, and output inrush current resistivity is 220 A for one 60 Hz cycle.

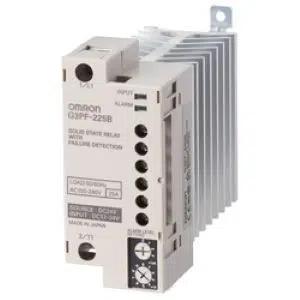

Operate time and release time are each one-half cycle of the load power source plus 1 ms max. Main-circuit output ON voltage drop is 1.6 V max. RMS and main-circuit leakage current is 10 mA max. at 200 VAC. Insulation resistance is 100 MΩ min. at 500 VDC, with dielectric strength of 2500 VAC at 50/60 Hz for 1 minute. Ambient operation ranges from -30 to 80°C without freezing or condensation. The related CTB version retains the same principal input, output, current, and inrush values: G3PF-225B-CTB.
