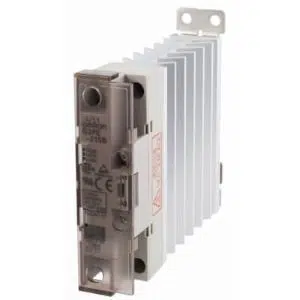

Omron G3PE-215B DC12-24 Solid-state Relay
Omron G3PE-215B DC12-24 is a single-phase G3PE solid state relay with phototriac isolation and a 12 to 24 VDC rated input. It provides a 100 to 240 VAC rated output, 75 to 264 VAC load voltage range, and 0.5 to 15 A load current at 25°C. The relay uses three elements, screw terminals, DIN track or screw mounting, an equipped zero-cross function, and a yellow operating indicator. Its output inrush current resistivity is 150 A for one 60 Hz cycle. The G3PE-215B DC12-24 belongs to the G3PE series within the Solid state relay range from Omron relay products.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3PE-215B DC12-24 |
Omron G3PE-215B DC12-24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Single-phase |
| Isolation Method | Phototriac |
| Mounting | DIN track mounting,Screw mounting |
| Operating Indicator | Equipped (Yellow) |
| Terminal Structure | Screw terminal |
| Product Classification | For Single-phase Heater |
| Number Of Elements | 3 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 12 to 24 VDC |
| Input Current | 10 mA max. |
| Input Operate Voltage | 9.6 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 100 to 240 VAC |
| Output Load Voltage Range | 75 to 264 VAC |
| Output Minimum Load Current | 0.2 VDC |
| Output Load Current | 0.5 to 15A (at 25 ℃) |
| Output Inrush Current Resistivity | 150 A (60 Hz 1 cycle) |
| Operate Time | 1/2 cycle of load power source + 1 ms max. |
| Release Time | 1/2 cycle of load power source + 1 ms max. |
| Output On Voltage Drop | 1.6 V max. (RMS) |
| Leakage Current | 10 mA max. (at 200 VAC) |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 2500 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.75 mm double amplitude) |
| Shock Resistance | 294 m/s 2 (DIN Track mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 1250 g |
The Omron G3PE-215B DC12-24 Solid State Relay is identified by a 12 to 24 VDC rated input and a 100 to 240 VAC rated output. Its input operates from 9.6 to 30 VDC, with 10 mA max. input current, 9.6 VDC max. operate voltage, and 1 VDC min. release voltage. This single-phase model uses three elements, phototriac isolation, screw terminals, and either DIN track or screw mounting. The output load voltage range is 75 to 264 VAC, while load current is specified from 0.5 to 15 A at 25°C. Output inrush current resistivity is 150 A for one 60 Hz cycle. A yellow operating indicator and equipped zero-cross function are also listed.

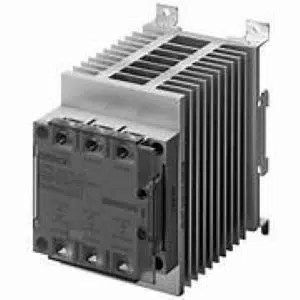

Operate time and release time are each one-half cycle of the load power source plus 1 ms max. Output ON voltage drop is 1.6 V max. RMS, leakage current is 10 mA max. at 200 VAC, and insulation resistance is 100 MΩ min. at 500 VDC. Dielectric strength is 2500 VAC at 50/60 Hz for 1 minute. Ambient operation is specified from -30 to 80°C without freezing or condensation. For the three-phase version with the same rated input and output ranges, see the G3PE-215B-3N DC12-24.
