Omron G3PE-235B-3N DC12-24 Solid-state Relay
Omron G3PE-235B-3N DC12-24 is a three-phase, 3-element G3PE solid state relay using phototriac isolation and DIN track mounting. Its rated input is 12 to 24 VDC, with a 9.6 to 30 VDC operating range and 10 mA max. input current at 24 VDC. The output is rated from 100 to 240 VAC and operates across a 75 to 264 VAC load voltage range. Output load current is 35 A at 40°C, while output inrush current resistivity is 440 A for one 60 Hz cycle. A yellow indicator, screw terminals, and an equipped zero-cross function are specified. The G3PE-235B-3N DC12-24 forms part of the SSR portfolio from Omron switching products.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3PE-235B-3N DC12-24 |
Omron G3PE-235B-3N DC12-24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | Three phase |
| Isolation Method | Phototriac |
| Mounting | DIN track mounting |
| Operating Indicator | Equipped (Yellow) |
| Terminal Structure | Screw terminal |
| Product Classification | For 3-phase Heater |
| Number Of Elements | 3 |
| Zero Cross Function | Equipped |
| Input Rated Voltage | 12 to 24 VDC |
| Input Current | 10 mA max. (at 24 VDC) |
| Input Operate Voltage | 9.6 VDC max. |
| Input Release Voltage | 1 VDC min. |
| Output Rated Load Voltage | 100 to 240 VAC |
| Output Load Voltage Range | 75 to 264 VAC |
| Output Minimum Load Current | 0.5 A |
| Output Load Current | 35 A (at 40 ℃) |
| Output Inrush Current Resistivity | 440 A (60 Hz 1 cycle) |
| Operate Time | 1/2 cycle of load power source + 1 ms max. |
| Release Time | 1/2 cycle of load power source + 1 ms max. |
| Output On Voltage Drop | 1.6 V max. (RMS) |
| Leakage Current | 10 mA max. (at 200 VAC) |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Dielectric Strength | 2500 VAC 50/60 Hz 1 min |
| Vibration Resistance | 10 to 55 to 10 Hz, 0.175 mm single amplitude (0.35 mm double amplitude) |
| Shock Resistance | 294 m/s 2 (98 m/s 2 with reverse mounting) |
| Ambient Temperature Operating | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Temperature Storage | -30 to 100 ℃ (with no freezing or condensation) |
| Ambient Humidity Operating | 45 to 85% RH |
| Weight | Approx. 1650 g |
The Omron G3PE-235B-3N DC12-24 Solid State Relay carries a 35 A output load-current specification at 40°C together with 440 A output inrush current resistivity for one 60 Hz cycle. It is a three-phase, 3-element G3PE model with phototriac isolation and DIN track mounting. Rated input voltage is 12 to 24 VDC and the input operating range is 9.6 to 30 VDC. Input current is 10 mA max. at 24 VDC, with 9.6 VDC max. operate voltage and 1 VDC min. release voltage. The output is rated from 100 to 240 VAC and spans a 75 to 264 VAC load voltage range. Screw terminals, a yellow operating indicator, and an equipped zero-cross function complete the listed configuration.

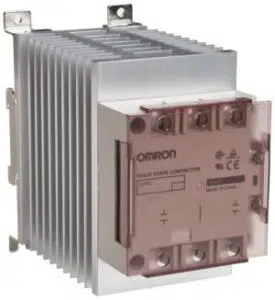

The specified operate time is one-half cycle of the load power source plus 1 ms max., and the release-time value is identical. Output ON voltage drop is 1.6 V max. RMS. Leakage current is 10 mA max. at 200 VAC, insulation resistance is 100 MΩ min. at 500 VDC, and dielectric strength is 2500 VAC at 50/60 Hz for 1 minute. Ambient operating temperature is -30 to 80°C without freezing or condensation. Within the three-phase G3PE group, a higher-current model retaining the same 100 to 240 VAC rated output and 440 A inrush value is the G3PE-245B-3N DC12-24.
