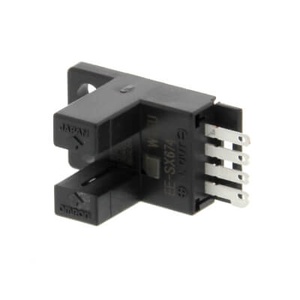

EE-SX674R - Omron Slot Type Photomicrosensor

Omron EE-SX674R Photomicrosensor is a close-mounting slot-type sensor with 5 mm slot width, PNP output, and Light-ON/Dark-ON selectable mode.
Spec | Value |
---|---|
Brand | Omron |
Product Type | Photomicrosensor |
Product | EE-SX674R |
Omron Slot Type Photomicrosensor EE-SX674R Technical Specifications
Specification | Value |
---|---|
Type | Grooved Type (Close-mounting) |
Luminous method | Non-modulated |
Sensing method | Through-beam type |
Sensing distance | Slot width: 5 mm |
Control output (Output type) | PNP open collector output |
Control output (Residual voltage) | at 50 mA load current: 1.3 V max. |
Operation mode | Dark-ON/Light-ON (selectable) |
Connection method | Connector type |
Current consumption | 12 mA (L terminal open) |
Control output (Load current) | 50 mA max. |
Indicator | No incident light (red) |
Power supply voltage | 5 to 24 VDC Β±10% ripple (p-p) 10 % max. |
Material | Case: Polybutylene terephthalate (PBT) Emitter/Receiver Cover: Polycarbonate (PC) |
Degree of protection | IP50 |
Ambient temperature (Operating) | -25 to 55 β (with no freezing or condensation) |
Ambient temperature (Storage) | -30 to 80 β (with no freezing or condensation) |
Ambient humidity (Operating) | 5 to 85 % (with no condensation) |
Ambient humidity (Storage) | 5 to 95 % (with no condensation) |
Shock resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
Vibration resistance | Destruction: 20 to 2000 Hz, peak acceleration 100 m/s2, 1.5-mm double amplitude 2 h each in X, Y, and Z directions (4 min periods) |
The Omron EE-SX674R is a compact slot-type photomicrosensor built for close-mounting detection needs. It features a 5 mm slot width and uses a non-modulated through-beam method for reliable sensing in constrained spaces. The connector-type output ensures quick and organized installation in control panels or compact assemblies.
This model supports selectable Light-ON and Dark-ON modes with a PNP open collector output, capable of handling up to 50 mA load current. With a low 12 mA current consumption and LED indicator for no incident light, it ensures smooth operation with quick status visibility. Its polybutylene terephthalate body and polycarbonate lens add to its durability.
EE-SX674R operates in environments ranging from -25Β°C to 55Β°C and provides resistance to shock and vibration. Its IP50 protection rating and compact design make it a preferred choice for high-density applications like robotic arms, packaging machines, and pick-and-place systems.
