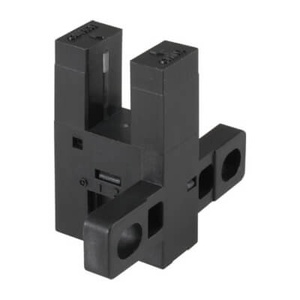

Omron EE-SX972P-C1 Photomicrosensor
The Omron EE-SX972P-C1 Photomicrosensor offers Throughbeam with slot, T-shaped, slot center 7 mm, 5 mm Sensing distance, PNP Output, Connector (4 poles), 5 to 24 VDC Power supply voltage, With both Dark-ON and Light-ON mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron EE Series.
| Brand | Omron |
| Product | Photomicro Sensors |
| Model Number | EE-SX972P-C1 |
Omron EE-SX972P-C1 Photomicrosensor – Technical Specifications
| Specification | Value |
|---|---|
| Type | T-shaped, slot center 7 mm |
| Sensing Method | Throughbeam with slot |
| Sensing Distance | 5 mm |
| Power Supply Voltage | 5 to 24 VDC |
| Control Output (Output Type) | PNP |
| Connection Method | Connector (4 poles) |
| Current Consumption | 21 mA |
| Operation Mode | With both Dark-ON and Light-ON |
| Control Output (Residual Voltage) | at 5 mA load current: 0.4 V max. at 50 mA load current: 1.0 V max. |
| Control Output (Load Current) | 50 mA max. |
| Indicator | Light indicator (orange) |
| Luminous Method | Non-modulated |
| Ambient Temperature (Operating) | -25 to 55 ℃ (with no freezing or condensation) |
| Ambient Temperature (Storage) | -30 to 80 ℃ (with no freezing or condensation) |
| Ambient Humidity (Operating) | 5 to 85 % (with no freezing or condensation) |
| Ambient Humidity (Storage) | 5 to 95 % (with no freezing or condensation) |
| Vibration Resistance | Destruction: 10 to 2000 Hz, 0.75 mm single amplitude in each X, Y, and Z directions (15 min, 10 cycle) |
| Shock Resistance | Destruction: 500 m/s2 for 3 times each in X, Y, and Z directions |
| Degree Of Protection | IP50 |
| Material | Case: Polybutylene terephthalate (PBT) Cover: Polybutylene terephthalate (PBT) Emitter/Receiver: Polycarbonate (PC) |
The Omron EE-SX972P-C1 is a compact T-shaped photomicrosensor designed for precise object detection in narrow slots. It features a 5 mm slot width with a centered T-shaped housing, making it suitable for high-precision tasks in space-limited areas.
This sensor provides two outputsLight-ON and Dark-ONthrough a PNP open collector interface, offering flexibility for various application requirements. It connects via a compact connector, ensuring easy installation and maintenance. An orange LED indicator provides visual feedback during operation, while the sensor maintains low power consumption at just 21 mA.
With a rugged body made from PBT and PC materials, the EE-SX972P-C1 offers IP50 protection and operates reliably in temperatures from -25°C to 55°C. It’s commonly used in part detection, slot-type sensing, and high-speed automation systems where accuracy and dual-mode detection are critical.
