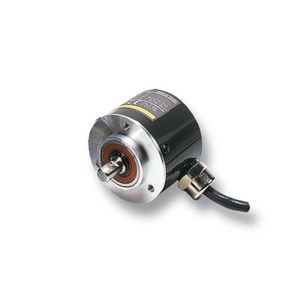

Omron E6C3-AN2E 256P/R 1M Rotary Encoder
The Omron E6C3-AN2E 256P/R 1M Rotary Encoder is an Absolute Shaft model offering a 256 P/R resolution for precise position detection in automation systems. It provides a Binary code with Voltage output configuration, designed as a Pre-wired model, 1 m Cable length to support easy installation and reliable signal transmission. Built with a 50 mm dia. housing, it operates on 12 VDC power supply voltage, ensuring stable and accurate output during continuous operation. Engineered for high performance and durability. Manufactured by Omron, part of the Omron Rotary Encoders family, available under the Omron E6C3-A Series.
| Brand | Omron |
| Product Type | Rotary Encoders |
| Model Number | E6C3-AN2E 256P/R 1M |
Omron E6C3-AN2E 256P/R 1M Rotary Encoder - Technical Specifications
| Specification | Value |
|---|---|
| Encoding Method | Absolute Shaft model |
| Resolution | 256 P/R |
| Output code | Binary code |
| Control output | Voltage output |
| Connection method | Pre-wired model, 1 m Cable length |
| Diameter | 50 mm dia. |
| Power supply voltage | 12 VDCΒ±10% |
| Current consumption | 70 mA max. |
| Inrush current | Approx. 6 A (0.8 ms) |
| Logic | Positive logic (high = 1, low = 0) |
| Ambient temperature | Operating: -10 to 70 β (with no icing) Storage: -25 to 85 β (with no icing) |
| Degree of protection | IEC: IP65 |
| Material | Case: Aluminum |
| Weight | Package: Approx. 300 g |
| Accessories | Instruction manual |
The Omron E6C3-AN2E 256P/R 1M is part of the E6C3 Rotary Encoder lineup and is frequently evaluated alongside other Omron rotary encoders during machine design and maintenance planning. Engineers often compare related models such as Omron E6C3-AG5C-C 360P/R 1M (Absolute Shaft, 360 P/R resolution, Gray code, NPN output, 1 m Cable length), Omron E6C3-AB5B 8P/R 2M (Absolute Shaft, 8 P/R resolution, BCD, PNP output, 2 m Cable length), and Omron E6C3-AN1E 256P/R 2M (Absolute Shaft, 256 P/R resolution, Binary code, Voltage output, 2 m Cable length) when selecting an encoder for conveyor positioning, shaft feedback, indexing systems, rotary tracking, or general motion monitoring tasks. Considering differences in shaft type, resolution, output coding, drive stage, signal format, wiring, and cable length helps match each encoder to PLC high-speed inputs and mechanical coupling points. These compatible Omron encoder variants also help maintenance teams maintain consistent wiring patterns, predictable pulse generation, connector alignment, and uniform installation layouts across different stations. The E6C3-AN2E 256P/R 1M fits naturally into automation systems that require a stable, durable, and accurate feedback device, and is well-suited for industrial environments where a reliable Omron Encoders ensures dependable long-term operation.
