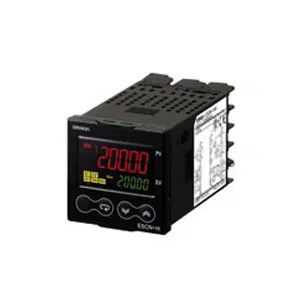

Omron E5CN-HQ2M-500 Digital Temperature Controller
The Omron E5CN-HQ2M-500 Temperature Controller is a compact and precise Advanced Digital Temperature Controller designed for stable, fast-response industrial temperature control. Its 1/16 DIN 48 × 48 × 78 (W × H × D) design supports a versatile operates on 100 to 240 VAC, 50/60 Hz with an allowable range of 85 to 110% of the power supply voltage, it provides ON/OFF or 2-PID control with auto-tuning for consistent temperature stability. The controller includes a Voltage output (for driving SSR), 2 auxiliary outputs, Digital setting using front panel keys, 11-segment digital display for clear visibility, and Screw terminal blocks for easy and secure panel integration. Manufactured by Omron, part of the Omron Temperature Controller ecosystem within the Omron E5CN Series.
| Brand | Omron |
| Product Type | Temperature Controller |
| Model Number | E5CN-HQ2M-500 |
Omron E5CN-HQ2M-500 Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Shape | 1/16 DIN 48 × 48 × 78 (W × H × D) |
| Power supply voltage | 100 to 240 VAC, 50/60 Hz |
| Operating voltage range | 85 to 110% of the power supply voltage |
| Power consumption | 100 to 240 VAC: 8.5 VA (max.) (E5CN-HR2 at 100 VAC: 3.0 VA) 24 VAC/VDC: 5.5 VA (24 VAC)/3.5 W (24 VDC) (max.) (E5CN-HR2D at 24 VAC: 2.7 VA) |
| Control method | ON/OFF or 2-PID control with auto-tuning |
| Input Type/Temperature input | Thermocouple: K, J, T, E, L, U, N, R, S, B, W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V |
| Control output 1 | Voltage output (for driving SSR) |
| Number of total auxiliary output | 2 |
| Setting method | Digital setting using front panel keys |
| Indication method | 11-segment digital display and individual indicators (7-segments displays also possible); Character height: PV: 11 mm, SV: 6.5 mm |
| Insulation resistance | 20 MΩ min. (at 500 VDC) |
| Dielectric strength | 2,300 VAC, 50 or 60 Hz for 1 min (between terminals with different charge) |
| Vibration resistance | Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions Destruction: 10 to 55 Hz, 0.75-mm single amplitude for 2 hrs each in X, Y, and Z directions |
| Shock resistance | Malfunction: 100 m/s2, 3 times each in X, Y, and Z directions Destruction: 300 m/s2, 3 times each in X, Y, and Z directions |
| Ambient temperature (Operating) | −10 to 55°C (with no condensation or icing), for 3-year warranty: −10 to 50°C |
| Ambient temperature (Storage) | −25 to 65°C (with no condensation or icing) |
| Ambient humidity (Operating) | 25% to 85% |
| Degree of protection | Front panel: IP66, Rear case: IP20, Terminals: IP00 |
| Case color | Black |
| Terminal type | Screw terminal blocks |
| Weight | Controller: Approx. 210 g, Adapter: Approx. 4 g × 2 |
The Omron E5CN-HQ2M-500 is frequently assessed alongside other units in the Digital Temperature Controllers group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5GC-QX2ACM-016 (DIN 48 x 24, ON/OFF or 2-PID control with auto-tuning, 24 VAC, 50/60 Hz; 24 VDC, Voltage output (for driving SSR), 11-segment digital display), Omron E5DC-CX2AUM-800 (48 × 48 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC, 50/60 Hz, Linear current output), and Omron E5CC-RX3DSM-001 (DIN48 x 48, ON/OFF or 2-PID control, 24 VAC (50/60 Hz); 24 VDC, Relay output, 11-segment digital display) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal limits. Reviewing shape, control method, supply voltage class, output structure, and indication.
