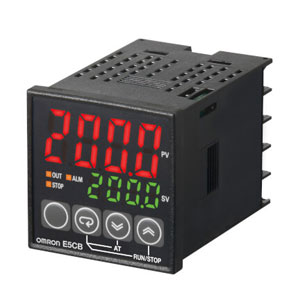

Omron E5CB-Q1P Temperature Controller
The Omron E5CB-Q1P Temperature Controller is designed for stable, fast-response industrial temperature control. Its 48 Γ 48 mm design supports a versatile operates on 100 to 240 VAC 50/60 Hz with an allowable range of 85% to 110% of rated supply voltage , it provides ON/OFF control or 2-PID control (with auto-tuning) for consistent temperature stability. The controller features Voltage output (for driving SSR), , 7-segment digital display that enhances visibility, its Screw terminal block terminal wiring system simplifies installation and reduces panel wiring time. Manufactured by Omron, part of the Omron Temperature Controller range within the Omron E5CB Series.
| Brand | Omron |
| Product | Temperature Controllers |
| Model Number | E5CB-Q1P |
Omron E5CB-Q1P Temperature Controller - Technical Specifications
| Specification | Value |
|---|---|
| Shape | 48 Γ 48 mm |
| Power supply voltage | 100 to 240 VAC 50/60 Hz |
| Operating voltage range/ Allowable voltage variable range | 85% to 110% of rated supply voltage |
| Power consumption | Approx. 3.5 VA (100 to 240 VAC) Approx. 3.5 VA (24 VAC) Approx. 2.5 W (24 VDC |
| Control method | ON/OFF control or 2-PID control (with auto-tuning) |
| Input Type/Temperature input | Thermocouple: K, J, T, R, or S (JIS C 1602-1995, IEC60584-1) |
| Control output 1 | Voltage output (for driving SSR) |
| Setting method | Digital setting using front panel keys |
| Indication method | 7-segment digital display and individual indicators Character height: 16.2 mm (PV) |
| Insulation resistance | 20 MΞ© min. (at 500 VDC) |
| Dielectric strength | 2,800 VAC, 50 or 60 Hz for 1 min (between terminals with different charge) |
| Vibration resistance | Malfunction: 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions Destruction: 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions |
| Shock resistance | Malfunction: 200 m/s2, 3 times each in X, Y, and Z directions Destruction: 300 m/s2, 3 times each in X, Y, and Z directions |
| Ambient temperature (Operating) | β10 to 55Β°C (with no condensation or icing)/With a three-year guarantee: β10 to 50Β°C |
| Ambient temperature (Storage) | β25 to 65Β°C (with no condensation or icing) |
| Ambient humidity (Operating) | 25% to 85% |
| Degree of protection | Front panel: IP66 Rear case: IP20, Terminals: IP00 |
| Terminal type | Screw terminal block |
| Weight | Controller: Approx. 210 g, Adapter: Approx. 4 g Γ 2 |
The Omron E5CB-Q1P is frequently assessed alongside other units in the E5CB Temperature Controller group because they share comparable sensor inputs, panel depth behaviour, and loop-control characteristics. Engineers often evaluate Omron E5CB-R1TCD (48 Γ 48 mm, ON/OFF control or 2-PID control, 24 VAC (50/60 Hz) 24 VDC, Relay output, 7-segment digital display and individual indicators Character height: 16.2 mm (PV)), Omron E5CB-Q1TC (48 Γ 48 mm, ON/OFF control or 2-PID control (with auto-tuning), 100 to 240 VAC 50/60 Hz, Voltage output (for driving SSR), 7-segment digital display and individual indicators Character height: 16.2 mm (PV)), and Omron E5CB-R1PD (48 Γ 48 mm, ON/OFF control or 2-PID control, 24 VAC 50/60 Hz, or 24 VDC, Relay output, 7-segment digital display and individual indicators Character height: 16.2 mm (PV)) when selecting a controller that fits panel wiring, SSR/relay load stages, and enclosure thermal.
