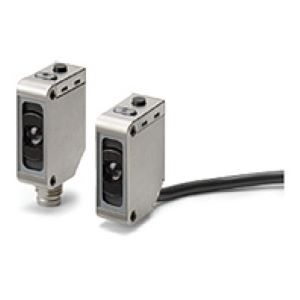

Omron E3ZM-V61 2M Photoelectric Sensor
The Omron E3ZM-V61 2M Photoelectric Sensor offers Mark Sensor (Diffuse reflective), Background Suppression (BGS), 12±2 mm Sensing distance, NPN Output, Pre-wired 2 M Cable, White LED (450 to 700 nm), 10 to 30 VDC Power supply voltage, Set in the order of the teaching operation. mode. Manufactured by Omron under the Omron Photoelectric Sensors category, this model belongs to the Omron E3ZM Series.
| Brand | Omron |
| Product Type | Photoelectric Sensor |
| Model Number | E3ZM-V61 2M |
Omron E3ZM-V61 2M Photoelectric Sensor – Technical Specifications
| Specification | Value |
|---|---|
| Sensing Method | Mark Sensor (Diffuse reflective) |
| Sensing Distance | 12±2 mm |
| Light Source | White LED (450 to 700 nm) |
| Power Supply Voltage | 10 to 30 VDC |
| Output configuration | NPN |
| Connection Method | Pre-wired 2 M Cable |
| Power Consumption | 750 mW max. (current consumption for a 30-V power supply voltage: 25 mA max.) |
| Control Output | Load power supply voltage: 30 VDC max., Load current: 100 mA max. (Residual voltage: 2 V max.) |
| Operation Mode | Set in the order of the teaching operation. |
| Response Time | Operate or reset: 50 μs max. |
| Sensitivity Adjustment | Teaching method |
| Indicators | Operating indicator (yellow), Stability indicator (green), and Teaching indicator (red) |
| Ambient Illumination | (Receiver side) Incandescent lamp: 3,000 lx max., Sunlight: 10,000 lx max. |
| Ambient Temperature Range | Operating: −40 to 60°C , Storage: −40 to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating: 35% to 85%, Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | 20 MΩ min. (at 500 VDC) |
| Dielectric Strength | 1,000 VAC at 50/60 Hz for 1 min |
| Vibration Resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 h each in X, Y, and Z directions |
| Shock Resistance | 500 m/s2 for 3 times each in X, Y, and Z directions |
| Protection Circuits | Reversed power supply polarity, Load short-circuit protection, and Reversed output polarity protection |
| Degree of Protection | IEC 60529: IP67, DIN 40050-9: IP69K Connection method Pre-wired cable (standard length: 2 m) or |
| Material | SUS316, PMMA (polymethylmethacrylate), PES (polyethersulfone), Fluoro rubber, PVC (polyvinyl chloride) |
| Weight | Approx. 85 g |
The Omron E3ZM-V61 2M is a specialized color mark photoelectric sensor designed for accurate detection of printed marks, labels, or contrasting features on packaging materials. It operates on a white LED light source (450–700 nm) and offers a sensing distance of 12±2 mm. Engineered for precision and responsiveness, it features an ultra-fast 50 µs response time, making it ideal for high-speed production lines where detection speed is critical.
With a teaching-based sensitivity adjustment system and three built-in indicators (yellow for operation, green for stability, red for teaching), the sensor is simple to configure and monitor during runtime. It supports a NPN output and operates within a 10 to 30 VDC range, consuming only 750 mW of power. The sensor’s protective circuitry includes reversed polarity protection, load short-circuit protection, and reversed output polarity safeguards—ensuring stable and long-term field operation across varying environmental conditions.
Constructed with a robust SUS316 stainless steel housing and advanced materials like PMMA, PES, PEEK, and fluoro rubber, the E3ZM-V61 2M is rated for both IP67 and IP69K protection, ensuring full resistance to water, dust, and high-pressure cleaning. With its compact form and pre-wired 2-meter cable, it’s ideally suited for packaging machines, labeling systems, and food-grade production environments.
