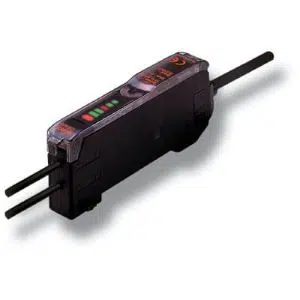

E3X-NAG11 2M: Omron Mark-detecting Pre-wired Fiber Amplifier
Technical Specifications of Omron Mark-detecting Pre-wired Fiber Amplifier E3X-NAG11 2M:
| Shape | Cuboid, rail mounting |
| Sensing Method | Amplifier with potentiometer |
| Connection Method | Pre Wired Cable, 2M Length |
| Output | NPN |
Omron Mark-detecting Pre-wired Fiber Amplifier E3X-NAG11 2M Technical Specifications:
| Specification | Value |
|---|---|
| Shape | Cuboid, rail mounting |
| Sensing Method | Amplifier with potentiometer |
| Application | Object detection |
| Connection Method | Pre Wired Cable, 2M Length |
| Output | NPN |
| Light Source | Green LED (520 nm) |
| Operation Mode | Dark-ON, Light-ON |
| Power Supply Voltage | 12 to 24 VDC |
| Current Consumption | 35 mA max. |
| Control output | ON/OFF output |
| Timer Function | OFF-delay timer: 40 ms (fixed) |
| Response Time | 0.2 ms |
| Material Housing | PBT |
| Number of channels | 1 |
| Number of Digital Outputs | 1 |
| Degree of Protection | IP50 |
| Weight | Approx. 100 g |
Mail Us for your needs in Omron Mark-detecting Pre-wired Fiber Amplifier E3X-NAG11 2M with budget-friendly prices. Here are the brief Technical Specifications of E3X-NAG11 2M are Cuboid, rail mounting shape, Amplifier with potentiometer, Object detection, Pre Wired Cable, 2M Length, NPN output, Green LED (520 nm), Dark-ON, Light-ON, 12 to 24 VDC power supply, 35 mA max. current, ON/OFF output, OFF-delay timer: 40 ms (fixed), 1 digital output, IP50 degree of protection. It's Time to get a Quote for your requirement of Omron Mark-detecting Pre-wired Fiber Amplifier. Experience the difference with our competitive pricing and superior support over other Suppliers.
