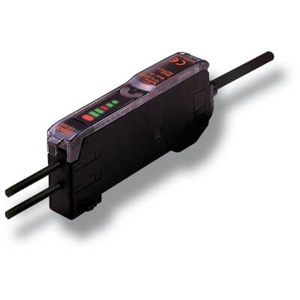

Omron E3X-NA41 2M Fiber Optic Sensor
Omron E3X-NA41 2M is a PNP fiber amplifier designed for general-purpose object detection with compatible fiber optic sensing heads. Manual potentiometer adjustment provides direct sensitivity setting, while selectable Light-ON and Dark-ON modes allow the switching operation to match different detection requirements. A 0.2 ms response time supports fast sensing, and the amplifier operates from 12 to 24 VDC with a pre-wired 2 m cable. Its rail-mounting PBT housing provides IP50 protection for suitable machine environments. The E3X-NA41 belongs to the E3X-NA Series and provides PNP switching within the fiber optic detection range from Omron sensing products for machine object detection.

| Brand | Omron |
| Product | Fiber Amplifier Unit |
| Model Number | E3X-NA41 2M |
Omron E3X-NA41 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Cuboid, rail mounting |
| Connection Method | Cable |
| Cable Length | 2 m |
| Sensing Method | Amplifier |
| Application | Object detection |
| Setting Method | Manual adjustment |
| Output | PNP |
| Operation Mode | Dark-ON, Light-ON |
| Power Supply Voltage | 12-24 V |
| Function | Timer |
| Response Time | 0.2 ms |
| Material Housing | PBT |
| Number Of Digital Outputs | 1 |
| Type Of Light | Polarity free red light |
| Degree Of Protection Ip | IP50 |
The Omron E3X-NA41 2M Fiber Amplifier provides a PNP switching output for object detection when connected to a compatible fiber optic sensing head. Manual potentiometer adjustment allows sensitivity to be set directly without relying on digital tuning, making the adjustment method a defining characteristic of the E3X-NA configuration. Selectable Light-ON and Dark-ON modes allow output operation to match different detection logic requirements. A 0.2 ms response time supports fast switching, while the 12 to 24 VDC supply suits common machine control systems. The amplifier includes a pre-wired 2 m cable and uses a cuboid rail-mounting PBT housing with IP50 protection. The important product relationships are PNP output, manual sensitivity adjustment, fiber amplification, Light-ON/Dark-ON operation, fast object detection and machine control switching. These functional attributes provide stronger selection context than low-value secondary specifications. Within the E3X-NA family, output polarity is especially important because it determines how the amplifier interfaces with the connected control input. The pre-wired connection also simplifies differentiation from connector-based amplifier variants. For a closely related E3X-NA amplifier with the same manual adjustment concept and 2 m cable but an NPN switching output, the E3X-NA11 2M provides the most relevant comparison.
