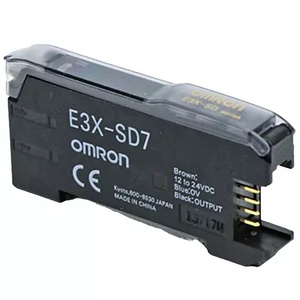

Omron E3X-SD7 Fiber Optic Sensor
Omron E3X-SD7 is an NPN fiber amplifier designed for fast object detection using compatible fiber optic sensing heads. Its red 4-element LED operates at 625 nm, providing the optical light source for the connected fiber sensing system. A 200 μs maximum operate or reset response supports high-speed detection, while the NPN output provides the switching signal for compatible machine control inputs. The wire-saving connector reduces individual wiring requirements when integrating amplifier units, and the device operates from 12 to 24 VDC. IP50 protection supports suitable panel environments. The E3X-SD7 belongs to the E3X-SD Series within the fiber amplifier range from Omron sensing products, combining NPN switching with fast optical detection.

| Brand | Omron |
| Product | Fiber Amplifier Unit |
| Model Number | E3X-SD7 |
Omron E3X-SD7 Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Connection Method | Wire-saving connector |
| Output | NPN |
| Light Source | Red, 4-element LED (625 nm) |
| Power Supply Voltage | 12 to 24 VDC ±10%, ripple (p-p): 10% max |
| Response Time | Operate or reset: 200 μs max. |
| Materials | Case: Polybutylene terephthalate (PBT) Cover: Polycarbonate (PC) |
| Degree Of Protection Ip | IEC 60529 IP50 |
| Ambient Illumination Receiver Side | Receiver side Incandescent lamp: 10,000 lux max. Sunlight: 20,000 lux max. |
| Ambient Temperature Range | Operating: Groups of 1 to 3 Amplifiers: −25°C to 55°C Groups of 4 to 11 Amplifiers: −25°C to 50°C Groups of 12 to 16 Amplifiers: −25°C to 45°C Storage: −30°C to 70°C (with no icing or condensation) |
| Ambient Humidity Range | Operating and storage: 35% to 85% (with no condensation) |
| Insulation Resistance | 20 MΩ. min. (at 500 VDC) |
| Dielectric Strength | 1,000 VAC at 50/60 Hz for 1 minute |
| Vibration Resistance Destruction | 10 to 55 Hz with a 1.5-mm double amplitude for 2 hours each in X, Y and Z directions |
| Shock Resistance Destruction | 500 m/s2, for 3 times each in X, Y and Z directions |
The Omron E3X-SD7 Fiber Amplifier processes optical signals from compatible fiber sensing heads and provides an NPN switching output for object detection. Its red 4-element LED operates at 625 nm, providing the optical light source used by the connected fiber sensing system. The amplifier has an operate or reset response of 200 μs maximum, making response speed an important model attribute for fast detection. A wire-saving connector provides the electrical interface and can reduce individual wiring requirements when multiple compatible amplifiers are installed together. The E3X-SD7 operates from 12 to 24 VDC ±10%. Its case uses PBT material, while the cover uses polycarbonate, and the unit carries an IP50 protection rating. The important product relationships are NPN fiber amplification, red LED sensing, 200 μs response, wire-saving connection and object detection. These entities provide stronger model-selection context than weight or low-value mechanical specifications. Within the E3X amplifier range, output type, connection method, light source and response speed are useful characteristics for comparing models. The E3X-SD7 therefore combines fast NPN switching with connector-based wiring. For another supplied NPN fiber amplifier with a system connector and fast response, the E3NX-FA7 provides a relevant functional comparison.
