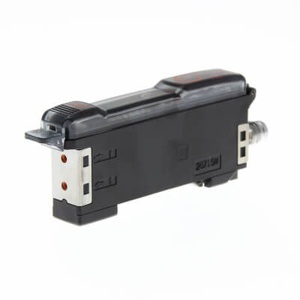

Omron E3X-NA44V Fiber Optic Sensor

Omron E3X-NA44V is a PNP fiber amplifier designed for object detection with manual sensitivity adjustment. Its M8 4-pin connector provides a detachable electrical connection, while selectable Dark-ON and Light-ON modes support different switching requirements. The amplifier uses polarity-free red light for optical sensing and provides a 0.2 ms response for signal processing. A timer adds output timing control, while the PNP output provides the detection signal for a compatible control input. The unit operates from 12 to 24 VDC and carries IP66 protection, making enclosure protection an important model characteristic. The E3X-NA44V belongs to the E3X-NA Series within the fiber amplifier range from Omron sensing products, combining manual adjustment with PNP switching and M8 connectivity.

Omron E3X-NA44V Fiber Optic Sensor
BrandOmron
ProductFiber Amplifier Unit
Model NumberE3X-NA44V

Omron E3X-NA44V Fiber Optic Sensor - Technical Specifications

SpecificationValue
ShapeCuboid, rail mounting
Connection MethodConnector M8 - 4 pin
Sensing MethodAmplifier
ApplicationObject detection
Setting MethodManual adjustment
OutputPNP
Operation ModeDark-ON, Light-ON
Power Supply Voltage12-24 V
FunctionTimer
Response Time0.2 ms
Material HousingPBT
Number Of Digital Outputs1
Type Of LightPolarity free red light
Degree Of Protection IpIP66

The Omron E3X-NA44V Fiber Amplifier provides PNP switching for object detection and uses manual sensitivity adjustment for setting the sensing level. Its M8 4-pin connector provides a detachable wiring arrangement, distinguishing it from pre-wired E3X-NA amplifier variants. Selectable Dark-ON and Light-ON operation allows switching logic to match the required detection condition, while polarity-free red light provides the optical source. A 0.2 ms response supports fast signal processing, and a timer provides additional output timing control. The amplifier operates from 12 to 24 VDC and provides 1 PNP output. Its PBT enclosure carries IP66 protection, making enclosure protection another important characteristic of this model. Manual adjustment, PNP output, M8 connectivity, Dark-ON and Light-ON switching, 0.2 ms response and IP66 protection are the primary attributes defining E3X-NA44V within the E3X-NA Series. These characteristics provide a clear distinction from NPN and pre-wired variants. For another supplied E3X-NA model using manual adjustment and PNP switching but with a pre-wired 2 m cable and IP50 protection, the E3X-NA41 2M provides a useful related model for comparing connection type and enclosure protection.
