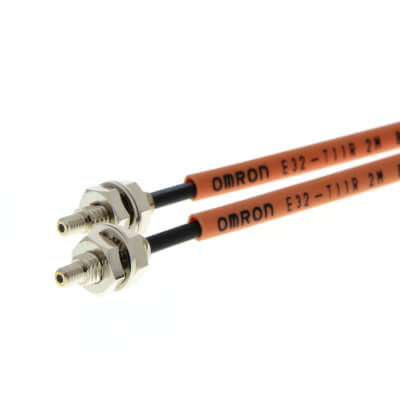

Omron E32-T11R 2M Fiber Optic Sensor
Omron E32-T11R 2M is an M4 through-beam fiber optic sensor designed for object detection at sensing distances up to 3000 mm. Its threaded M4 sensing head uses a top-view sensing orientation, while flexible fiber construction supports routing through compact machine spaces. The 2 m fiber cable combines a plastic core with a PVC sheath and supports a small 1 mm bending radius, providing flexibility around equipment. IP67 protection and an operating range from -40 to 70°C support demanding industrial sensing conditions. The E32-T11R belongs to the E32 Series within the through-beam fiber sensor range from Omron sensing products for object presence and position detection.

| Brand | Omron |
| Product | Fiber Optic Sensor |
| Model Number | E32-T11R 2M |
Omron E32-T11R 2M Fiber Optic Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Shape | Threaded |
| Sensing Distance | 3000 mm |
| Size | M4 |
| Cable Length | 2 m |
| Sensing Method | Through-beam |
| Application | Object detection |
| Features | Flexible fiber |
| Sensing Surface Orientation | Top-view |
| Temperature Range | -40-70 °C |
| Bending Radius | 1 mm |
| Free Cut | yes |
| Material Core | Plastic |
| Material Sheath | PVC |
| Degree Of Protection Ip | IP67 |
The Omron E32-T11R 2M Fiber Optic Sensor uses a through-beam sensing arrangement for object detection at distances up to 3000 mm. Its threaded M4 sensing head provides a compact optical detection point, while the top-view sensing orientation defines how the sensing beam is directed toward the target. Flexible fiber construction supports routing through restricted machine spaces where rigid sensing hardware may be difficult to position. The supplied 2 m fiber cable uses a plastic core with a PVC sheath and supports a small 1 mm bending radius, making cable flexibility an important model attribute. IP67 protection supports demanding industrial sensing environments, while the specified operating temperature range extends from -40 to 70°C. The main product relationships are M4 threaded sensing, through-beam object detection, top-view orientation, flexible fiber, 2 m cable and long sensing distance. These characteristics provide useful model-selection context without adding unnecessary secondary specifications. Within the E32 Series, head size, sensing method, orientation, fiber flexibility and detection distance help differentiate individual sensing heads. For another M4 through-beam E32 model with a closely related T11 configuration and 2 m fiber length, the E32-T11 2M provides a relevant related model.
