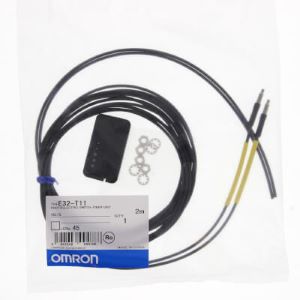

Omron E32-T11 2M Fiber Optic Sensor

Omron E32-T11 2M is a through-beam fiber optic sensor designed for object detection at sensing distances up to 3750 mm. Its threaded sensing structure provides a defined mounting arrangement, while the top-view orientation directs the optical path toward the detection area. R4 bend-resistant fiber construction supports cable routing where fiber durability is an important requirement. The pre-wired 2 m fiber uses a plastic core with a PVC sheath and provides a 4 mm bending radius. IP67 protection and operation from -40 to 70°C support industrial sensing conditions. The E32-T11 2M belongs to the E32 Series within the through-beam fiber sensor range from Omron sensing products, combining long-distance detection with a threaded head and bend-resistant fiber.

Omron E32-T11 2M Fiber Optic Sensor
BrandOmron
ProductFiber Optic Sensor
Model NumberE32-T11 2M

Omron E32-T11 2M Fiber Optic Sensor - Technical Specifications

SpecificationValue
ShapeThreaded
Sensing Distance3750 mm
Connection MethodPre Wired Cable, 2M Length
Sensing MethodThrough-beam
ApplicationObject detection
FeaturesR4 bend resitant fiber
Temperature Range-40-70 °C
Bending Radius4 mm
Free Cutyes
Material CorePlastic
Sensing DirectionTop-view
Material SheathPVC
Degree Of Protection IpIP67

The Omron E32-T11 2M Fiber Optic Sensor uses through-beam sensing for object detection at distances up to 3750 mm. Its threaded sensing structure provides a defined mounting arrangement, while the top-view orientation directs the optical path toward the monitored area. R4 bend-resistant fiber construction is an important model characteristic, providing a different cable structure from flexible E32 variants designed around smaller bending radii. The pre-wired 2 m fiber uses a plastic core with a PVC sheath and provides a 4 mm bending radius. IP67 protection and operation from -40 to 70°C define the supplied environmental characteristics. Through-beam sensing, 3750 mm detection distance, threaded construction, top-view orientation and bend-resistant fiber are the primary attributes defining E32-T11. These characteristics position the model among long-distance E32 through-beam sensing heads while distinguishing it from square and side-view configurations. The combination of extended detection distance and bend-resistant fiber provides its main functional identity. For another supplied E32 through-beam model offering a longer 4000 mm sensing distance with an M4 threaded head and flexible fiber construction, the E32-LT11N 2M provides a useful related model for comparing long-distance threaded fiber sensing configurations.
