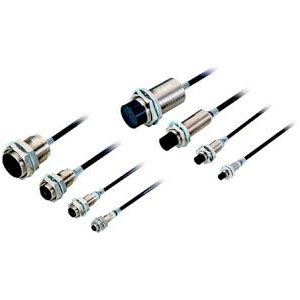

Omron E2EQ-X11D118-M1TGJ 0.3M Proximity Sensor
The Omron E2EQ-X11D118-M1TGJ 0.3M Proximity Sensor offers Inductive, M18, Shielded, 11 mm Sensing distance, DC 2-wire NO, M12 Pre-wired Smartclick Connector 0.3 M Cable, 10 to 30 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2EQ Series.
| Brand | Omron |
| Product Type | Proximity Sensor |
| Model Number | E2EQ-X11D118-M1TGJ 0.3M |
Omron E2EQ-X11D118-M1TGJ 0.3M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Size | M18 |
| Mounting type | Shielded |
| Sensing Distance | 11 mm |
| Setting Distance | 0 to 8.8 mm |
| Output configuration | DC 2-wire |
| Operation Mode | NO |
| Connection Method | M12 Pre-wired Smartclick Connector 0.3 M Cable |
| Detectable Object | Ferrous metals |
| Standard Sensing Object | 33 Γ 33 Γ 1 mm |
| Response Frequency | 250 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Surge suppressor, Load short-circuit protection |
| Ambient Temperature Range | Operating: -25 to 70Β°C, Storage: -40 to 85Β°C (with no icing or condensation) |
| Degree of Protection | IP67 (IEC 60529) and IP67G |
| Control Output | 3 to 100 mA |
| Indicators | Operation indicator (orange), Setting indicator (green) |
| Materials | Fluororesin coating (Base material: brass), Fluorine resin, Fluororesin coating (Base material: brass), Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 90 g |
The Omron E2EQ-X11D118-M1TGJ 0.3M is often compared with other models in the E2EQ group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2EQ-X15B1D30 2M (M30, 15 mm sensing, DC 3-wire PNP, 2 M Cable), Omron E2EQ-X15D130-T 2M (M30, 15 mm sensing, 2 M Cable), and Omron E2EQ-X1R5B1D8-M1TJ 0.3M (M8, 1.5 mm sensing, DC 3-wire PNP) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2EQ-X11D118-M1TGJ 0.3M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
