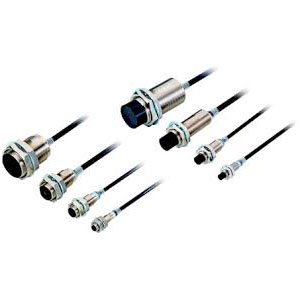

Omron E2EQ-X1R5B1D8-M1TJ 0.3M Proximity Sensor
Omron E2EQ-X1R5B1D8-M1TJ 0.3M features a compact M8 shielded inductive body with 1.5 mm sensing and a 0 to 1.2 mm setting range. Its DC 3-wire PNP output connects through an M12 pre-wired Smartclick connector with a 0.3 m cable, while operating voltage spans 10 to 30 VDC and response frequency reaches 2,000 Hz. The E2EQ-X1R5B1D8-M1TJ 0.3M sits within the E2EQ Series, while related compact formats are covered across the wider M8 Smartclick proximity sensor range available through Omron Industrial Products for compact sensing.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EQ-X1R5B1D8-M1TJ 0.3M |
Omron E2EQ-X1R5B1D8-M1TJ 0.3M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M8 |
| Mounting type | Shielded |
| Sensing Distance | 1.5 mm |
| Setting Distance | 0 to 1.2 mm |
| Output configuration | DC 3-wire PNP |
| Connection Method | M12 Pre-wired Smartclick Connector 0.3 M Cable |
| Detectable Object | Ferrous metals |
| Standard Sensing Object | 8 × 8 × 1 mm |
| Response Frequency | 2,000 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
| Ambient Temperature Range | Operating/Storage: -40 to 85°C (with no icing or condensation) |
| Degree of Protection | IEC 60529:IP67, JIS C 0920 Annex 1: IP67G |
| Control Output | 1-output models: 10 to 30 VDC, Class 2, 200 mA max, (-40 to 70°C), 100 mA max, (70 to 85°C) 2-output models: 10 to 30 VDC, Class 2, 50 mA max. |
| Indicators | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
| Materials | Fluororesin coating (Base material: brass), Fluorine resin, Fluororesin coating (Base material: brass), Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 55 g |
The Omron E2EQ-X1R5B1D8-M1TJ 0.3M Proximity Sensor uses a compact M8 shielded inductive body with a 1.5 mm sensing distance and a 0 to 1.2 mm setting range. Its DC 3-wire PNP output is connected through an M12 pre-wired Smartclick connector with a 0.3 m cable. Operating voltage is 10 to 30 VDC and response frequency reaches 2,000 Hz. Ferrous metals are specified with an 8 × 8 × 1 mm standard object. The stated 1-output rating reaches 200 mA max. from -40 to 70°C and 100 mA max. from 70 to 85°C, with reverse-polarity, surge, and output short-circuit protection included.
For compact installations requiring an Omron M8 proximity sensor with 1.5 mm sensing, PNP output, and an M12 Smartclick connection, the specified model is the E2EQ-X1R5B1D8-M1TJ. Operating and storage temperatures cover -40 to 85°C, while IEC 60529 IP67 and JIS C 0920 Annex 1 IP67G are listed. Material details include fluororesin-coated brass, fluorine resin, zinc-plated iron, and PVC. Its compact format also suits specifications for an Omron PNP proximity sensor, Omron 1.5 mm proximity sensor, and Omron M8 shielded proximity sensor. For another E2EQ model using an M12 standard connector, see E2EQ-X10D1-M1GJ 0.5M.
