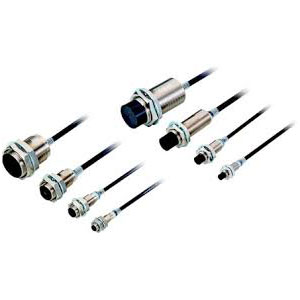

Omron E2EQ-X22B3D30 2M Proximity Sensor
Omron E2EQ-X22B3D30 2M uses an M30 shielded inductive body offering 22 mm sensing and a 0 to 16.8 mm setting range. Its DC 3-wire PNP circuit provides NO+NC output through a pre-wired 2 m cable, with 10 to 30 VDC supply and a 200 Hz response frequency. The E2EQ-X22B3D30 2M sits within the E2EQ Series, while other dual-output configurations are represented in the wider 22 mm PNP proximity sensor range available among Omron Automation Sensors for industrial control.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2EQ-X22B3D30 2M |
Omron E2EQ-X22B3D30 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting type | Shielded |
| Sensing Distance | 22 mm |
| Setting Distance | 0 to 16.8 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NO+NC |
| Connection Method | Pre-wired 2 M Cable |
| Detectable Object | Ferrous metals |
| Standard Sensing Object | 66 × 66 × 1 mm |
| Response Frequency | 200 Hz |
| Power Supply Voltage | 10 to 30 VDC |
| Protection Circuit | Power supply reverse polarity protection, Surge suppressor, Output short-circuit protection, Output reverse polarity protection |
| Ambient Temperature Range | Operating/Storage: -25 to 70°C (with no icing or condensation) |
| Degree of Protection | IEC 60529: IP67, JIS C 0920 Annex 1: IP67G |
| Control Output | 1-output models: 10 to 30 VDC, Class 2, 100 mA max,, 2-output models: 10 to 30 VDC, Class 2, 50 mA max. |
| Indicators | In the Standard I/O mode (SIO mode): Operation indicator (orange, lit) and communication indicator (green, not lit) In the IO-Link communication mode (COM mode): Operation indicator (orange, lit) and communication indicator (green, blinking at 1 s intervals) |
| Materials | Fluororesin coating (Base material: brass), Fluorine resin, Fluororesin coating (Base material: brass), Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 260 g |
The Omron E2EQ-X22B3D30 2M Proximity Sensor has an M30 shielded inductive body with a 22 mm sensing distance and a 0 to 16.8 mm setting range. DC 3-wire PNP output provides both NO and NC switching through a pre-wired 2 m cable, operating from 10 to 30 VDC. Response frequency is 200 Hz, while ferrous metals are specified with a 66 × 66 × 1 mm standard object. The stated 2-output rating is 50 mA max. Supply reverse-polarity, surge, output short-circuit, and output reverse-polarity protection are included.
For an Omron M30 proximity sensor requiring 22 mm sensing, PNP NO+NC output, and fixed two-metre wiring, the corresponding model is the E2EQ-X22B3D30. Operating and storage temperatures cover -25 to 70°C, with IEC 60529 IP67 and JIS C 0920 Annex 1 IP67G listed. Material details include fluororesin-coated brass, fluorine resin, zinc-plated iron, and PVC. Its dual-output specification also suits requirements for an Omron PNP proximity sensor, Omron 22 mm proximity sensor, and Omron shielded proximity sensor. For another M30 PNP model with 15 mm sensing and normally open output, see E2EQ-X15B1D30 2M.
