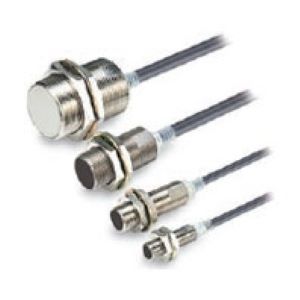

Omron E2E-X5MF2 2M Proximity Sensor
Omron E2E-X5MF2 2M is a cylindrical M12 unshielded inductive proximity sensor with a 5 mm sensing distance and a 0 to 4 mm setting distance. It provides a DC 3-wire PNP output with NC operation through an oil-resistant PVC pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 15 × 15 × 1 mm standard sensing object. Response frequency is 0.4 kHz, while control output is rated 200 mA max. A red operation indicator is specified with short-circuit, surge, and reverse-polarity protection. The E2E-X5MF2 2M is listed among M12 cable-type proximity sensors from Omron industrial sensing technology.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X5MF2 2M |
Omron E2E-X5MF2 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Housing Shape | Cylindrical |
| Size | M12 |
| Mounting type | Unshielded |
| Sensing Distance | 5 mm |
| Setting Distance | 0 to 4 mm |
| Output configuration | DC 3-wire PNP |
| Operation Mode | NC |
| Connection Method | Pre-wire 2 M Cable |
| Cable specifications | PVC (oil-resistant) |
| Detectable Object | Ferrous metal |
| Standard Sensing Object | Iron, 15 ×15 × 1 mm |
| Response Frequency | 0.4 kHz |
| Power Supply Voltage | 12 to 24 VDC |
| Protection Circuit | Load short-circuit protection, Surge suppressor, Reverse polarity protection |
| Ambient Temperature Range | Operating: −25 to 70°C, Storage: −40 to 85°C (with no icing or condensation) |
| Degree of Protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Control Output | 200 mA max |
| Indicators | Operation indicator (red) |
| Materials | Nickel-plated brass, Polybutylene terephthalat (PBT), Nickel-plated brass, Zinc-plated iron, Vinyl chloride (PVC). |
| Weight | Approx. 75 g |
The Omron E2E-X5MF2 2M Proximity Sensor uses a cylindrical M12 unshielded inductive sensing body with a 5 mm sensing distance and a 0 to 4 mm setting distance. It provides a DC 3-wire PNP output with NC operation through an oil-resistant PVC pre-wired 2 m cable and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, paired with an iron 15 × 15 × 1 mm standard sensing object. Response frequency is 0.4 kHz, while control output is rated 200 mA max. A red LED indicates operation. Load short-circuit protection, surge suppression, and reverse-polarity protection are specified for the sensing circuit.
Operating conditions for the E2E-X5MF2 cover -25 to 70°C, while storage extends from -40 to 85°C without icing or condensation. IEC 60529 IP67 and an in-house oil-resistant rating are specified. Nickel-plated brass, PBT, zinc-plated iron, and PVC are included among the construction materials. The unshielded M12 configuration provides the stated 5 mm sensing range and combines PNP NC switching with direct cable wiring. The oil-resistant PVC cable supports fixed machine installations, while ferrous metal remains the specified target. For another PNP E2E sensor with a compact M8 body, 1.5 mm sensing range, and pre-wired cable, see E2E-X1R5F1 2M.
