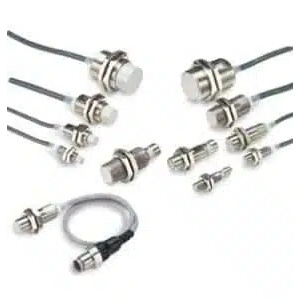

E2E-X5E1 2M - Omron Standard Proximity Sensor
The Omron E2E-X5E1 2M is a robust M18 shielded proximity sensor designed for accurate metal object detection in industrial environments. Featuring a 5 mm sensing range, NPN NO output, and 12โ24 VDC power input, this model ensures reliable sensing performance with a durable pre-wired 2-meter cable.
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Proximity Sensors |
| Product | E2E-X5E1 2M |
Omron Standard Proximity Sensor E2E-X5E1 2M Technical Specifications:
| Specification | Value |
|---|---|
| Size | M18 |
| Mounting type | Shielded |
| Sensing Distance | 5 mm |
| Setting distance | 0 to 4 mm |
| Output type | NPN, DC 3 Wire |
| Operation mode | NO |
| Power supply | 12 to 24 VDC, ripple (p-p): 10% max. (10 to 30 VDC) |
| Connection method | Pre-wired Models(2 m) |
| Cable Specifications | PVC (oil-resistant) |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard target | Iron, 18 ร 18 ร 1 mm |
| Response frequency | 0.6 kHz |
| Current consumption | 13 mA max. |
| Indicator | Operation indicator (red) |
| Protection circuit | Load short-circuit protection, Surge suppressor, Reverse polarity protection |
| Ambient temperature range | Operating/Storage: โ40 to 85ยฐC (with no icing or condensation) |
| Ambient humidity | Operating/Storage: 35% to 95% (with no condensation) |
| Temperature influence | ยฑ15% max. of sensing distance at 23ยฐC in the temperature range of โ40 to 85ยฐC ยฑ10% max. of sensing distance at 23ยฐC in the temperature range of โ25 to 70ยฐC |
| Voltage influence | ยฑ1% max. of sensing distance at rated voltage in the rated voltage ยฑ15% range |
| Insulation resistance | 50 Mฮฉ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IP67 |
| Weight | Approx. 150 g |
๐ ๏ธ Get Quotes Instantly from Omron Vendors
M.K Electricals
โ Verified๐ Trusted Vendor
Jeysan Electronics
โ Verified๐ Trusted Vendor
Sudarshan Enterprises
โ Verified๐ Trusted Vendor
The Omron E2E-X5E1 2M proximity sensor offers precision, durability, and ease of integration for industrial detection applications. This M18-sized cylindrical sensor is shielded, allowing reliable sensing performance with reduced influence from surrounding metals. It detects ferrous targets up to 5 mm and comes with a pre-wired 2-meter PVC cable that is oil-resistant, ensuring easy installation and long-lasting performance in harsh environments.
This model supports NPN NO output in a DC 3-wire configuration with an input voltage range of 12 to 24 VDC (10 to 30 VDC including ripple). It features a high switching frequency of 0.6 kHz, making it suitable for fast-response applications such as production lines, conveyor systems, and machine tools. It includes a red LED operation indicator for quick operational status checks, and built-in protection features such as short-circuit protection, surge suppressor, and reverse polarity protection to enhance safety and stability.
With an IP67 rating, the E2E-X5E1 2M is dust-tight and waterproof, ideal for use in rugged industrial conditions. Its operational temperature range from -40ยฐC to 85ยฐC supports use in environments with extreme temperature fluctuations. The sensor is built using high-quality materials, ensuring mechanical durability with resistance to shock and vibration. It complies with strict dielectric and insulation standards for added safety.
Engineers looking for a high-reliability proximity sensor with fast response, robust construction, and industrial-grade protection will find the Omron E2E-X5E1 2M a dependable solution. For official technical documentation, refer to the Omron product page: https://www.ia.omron.com/product/item/1675/.
