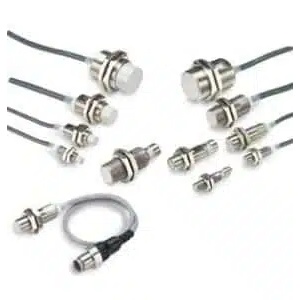

Omron E2E-X10Y1-M1 Proximity Sensor
Omron E2E-X10Y1-M1 is an M30 unshielded inductive proximity sensor with a 10 mm sensing distance and a 0 to 8 mm setting distance. It uses an AC 2-wire NO output through an M12 connector and operates from 24 to 240 VAC. Ferrous metal is the specified detectable object, with an iron 30 × 30 × 1 mm standard sensing object. Leakage current is 1.7 mA max., response frequency is 25 Hz, and differential travel is 10% max. of sensing distance. A red operation indicator, surge suppressor, stainless-steel body, and IP67 protection are specified. The E2E-X10Y1-M1 is listed under AC proximity sensors from Omron industrial sensors.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X10Y1-M1 |
Omron E2E-X10Y1-M1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting | Unshielded |
| Sensing Distance | 10 mm |
| Setting Distance | 0 to 8 mm |
| Output Configuration | AC 2 Wire |
| Operation Mode | NO |
| Connection | M12 Connector |
| Power Supply Voltage | 24 to 240 VAC |
| Body Material | Stainless steel |
| Standard Target | Iron, 30 × 30 × 1 mm |
| Leakage Current | 1.7 mA max |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 25 Hz |
| Indicator | Operation indicator (red) |
| Protection Circuit | Surge suppressor |
| Ambient Temperature Range | Operating/Storage: −40 to 85°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/storage: 35% to 95% (with no condensation) |
| Insulation Resistance | ±15% max. of sensing distance at 23°C in the temperature range of −40 to 85°C, ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Dielectric Strength | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Voltage Influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Degree Of Protection | IP67 |
The Omron E2E-X10Y1-M1 Proximity Sensor uses an M30 unshielded inductive sensing body with a 10 mm sensing distance and a 0 to 8 mm setting distance. It provides an AC 2-wire NO output through an M12 connector and operates from 24 to 240 VAC. Ferrous metal is the specified detectable object, with an iron 30 × 30 × 1 mm standard sensing object. Leakage current is 1.7 mA max., response frequency is 25 Hz, and differential travel is 10% max. of sensing distance. A red operation indicator and surge suppressor are specified. Stainless steel is listed for the body, while the sensor carries IP67 protection.
Operating and storage conditions for the E2E-X10Y1-M1 cover -40 to 85°C without icing or condensation, with humidity from 35% to 95%. Temperature influence is ±15% max. of sensing distance at 23°C across -40 to 85°C and ±10% max. across -25 to 70°C. Insulation resistance is 50 MΩ min. at 500 VDC, dielectric strength is 4,000 VAC for 1 minute, and voltage influence is ±1% max. within rated voltage ±15%. For another M30 E2E sensor with the same 10 mm sensing distance and M12 connector but DC 3-wire NPN NC output, see E2E-X10E2-M1.
