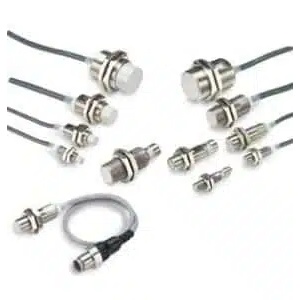

Omron E2E-X3D2-N 2M Proximity Sensor
The Omron E2E-X3D2-N 2M Proximity Sensor offers Inductive, M12, Shielded, 3 mm Sensing distance, DC 2-wire NC Output, PVC (oil-resistant) Cable, Pre Wired, Length 2M, 12 to 24 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2E Series.
| Brand | Omron |
| Product Type | Proximity Sensors |
| Model Number | E2E-X3D2-N 2M |
Omron E2E-X3D2-N 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Size | M12 |
| Mounting type | Shielded |
| Sensing Distance | 3 mm |
| Setting distance | 0 to 2.4 mm |
| Output type | DC 2-wire |
| Operation mode | NC |
| Power supply | 12 to 24 VDC |
| Connection method | Pre Wired, Length 2M |
| Cable Specifications | PVC (oil-resistant) |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard target | Iron, 12 Γ 12 Γ 1 mm |
| Response frequency | 1 kHz |
| Leakage current | 0.8 mA max. |
| Indicator | Operation indicator (red) |
| Protection circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient temperature range | Operating: β25 to 70Β°C, Storage: β40 to 85Β°C (with no icing or condensation) |
| Ambient humidity | Operating/storage: 35% to 95% (with no condensation) |
| Temperature influence | Β±10% max. of sensing distance at 23Β°C in the temperature range of β25 to 70Β°C |
| Voltage influence | Β±1% max. of sensing distance at rated voltage in the rated voltage Β±15% range |
| Insulation resistance | 50 MΞ© min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IP67 |
The Omron E2E-X3D2-N 2M represents Omronβs commitment to reliability and innovation in proximity sensing. Designed for performance and long life, this Omron 2 Wire Inductive Sensor is widely trusted by automation engineers for detecting ferrous metals with high precision. The E2E X3D2 N 2M ensures consistent operation in harsh environments where dust, oil, and moisture are common.
Built with a shielded M12 housing, the Omron E2E-X3D2-N 2M offers a 3 mm sensing distance and supports a standard target size of 12 Γ 12 Γ 1 mm iron. It features a DC 2-wire NC output, red LED indicator, and operates at 12 to 24 VDC with low leakage current. Vibration and shock resistance, combined with an IP67 rating, make this sensor suitable for rugged environments.
From conveyor belt monitoring to automated part detection in manufacturing lines, the E2E X3D2 N 2M provides fast, accurate sensing without mechanical wear. Its compact pre-wired design and built-in protection circuits make it easy to integrate into tight control panels. For tough industrial scenarios, the Omron E2E-X3D2-N 2M is the dependable Omron 2 Wire Inductive Sensor of choice.
