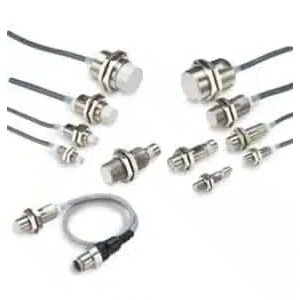

Omron E2E-X2F1 2M Proximity Sensor
The Omron E2E-X2F1 2M Proximity Sensor offers Inductive, M12, Shielded, 2 mm Sensing distance, PNP, DC 3 Wire NO Output, PVC (oil-resistant) Cable, Pre Wired, Length 2M, 12 to 24 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2E Series.
| Brand | Omron |
| Product Type | Proximity Sensors |
| Model Number | E2E-X2F1 2M |
Omron E2E-X2F1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Size | M12 |
| Mounting type | Shielded |
| Sensing Distance | 2 mm |
| Setting distance | 0 to 1.6 mm |
| Output type | PNP, DC 3 Wire |
| Operation mode | NO |
| Power supply | 12 to 24 VDC |
| Connection method | Pre Wired, Length 2M |
| Cable Specifications | PVC (oil-resistant) |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard target | Iron, 12 Γ 12 Γ 1 mm |
| Response frequency | 1.5 kHz |
| Current consumption | 13 mA max |
| Indicator | Operation indicator (red) |
| Protection circuit | Load short-circuit protection, Surge suppressor, Reverse polarity protection |
| Ambient temperature range | Operating/Storage: β40 to 85Β°C (with no icing or condensation) |
| Ambient humidity | Operating/Storage: 35% to 95% (with no condensation) |
| Temperature influence | Β±15% max. of sensing distance at 23Β°C in the temperature range of β40 to 85Β°C Β±10% max. of sensing distance at 23Β°C in the temperature range of β25 to 70Β°C |
| Voltage influence | Β±1% max. of sensing distance at rated voltage in the rated voltage Β±15% range |
| Insulation resistance | 50 MΞ© min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 1000 VAC, 50/60 Hz for 1 minute between current carry parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IP67 |
| Weight | Approx. 75 g |
The Omron E2E-X2F1 2M is often compared with other models in the E2E Standard Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2E-X2ME1 2M (M8, 2 mm Sensing Distance, DC 3 Wire NPN, NO, PVC (oil-resistant), Pre Wired, Length 2M), Omron E2E-X1R5E1-M1 (M8, 1.5 mm Sensing Distance, DC 3 Wire NPN, NO, M12 Connector), and Omron E2E-X1R5E1 2M (M8, 1.5 mm Sensing Distance, DC 3 Wire NPN, NO, PVC (oil-resistant), Pre Wired, Length 2M) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2E-X2F1 2M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Standard Proximity Sensor.
