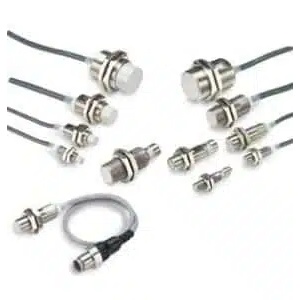

E2E-X1R5E1 2M: Omron M8 Proximity Sensor in Chennai
The technical specifications for the Omron M8 Proximity Sensor E2E-X1R5E1 2M are:
- Sensor Head (Dia): M8
- Installation: Flush | Shielded
- Sensing Distance: 1.5 mm
- Connection Method: Pre-wired Models
- Cable Specifications: PVC (oil-resistant)
- Switching: NO
- Output Configuration: DC 3 Wire
- Power Supply Voltage: 12 to 24 VDC
Omron M8 Proximity Sensor E2E-X1R5E1 2M Technical Specification:
| Sensor Head (Dia) | M8 |
| Installation | Flush | Shielded |
| Sensing Distance | 1.5 mm |
| Connection Method | Pre-wired Models |
| Cable Specifications | PVC (oil-resistant) |
| Switching | NO |
| Output Configuration | DC 3 Wire |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard sensing object | Iron, 8 × 8 × 1 mm |
| Response frequency | 2 KHz |
| Power supply voltage | 12 to 24 VDC ripple (p-p) 10% max. |
| Leakage current | 13 mA max |
| Indicator | Operation indicator (red) |
| Protection circuit | Load short-circuit protection, Surge suppressor, Reverse polarity protection |
| Ambient air temperature | Operating Storage: −40 to 85°C (with no icing or condensation) |
| Ambient humidity | Operating/storage: 35% to 95% (with no condensation) |
| Voltage influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Degree of protection | IEC 60529 IP67, in-house standards: oil-resistant |
| Material Case | Stainless steel (SUS303) |
| Material Sensing surface | PBT |
Searching for a reliable Omron M8 proximity sensor E2E-X1R5E1 2M. This flush-mounted, shielded sensor has a 1.5 mm sensing distance. It features a durable, oil-resistant PVC cable and operates on a 12 to 24 VDC power supply. With its NO switching and DC 3-wire output, it’s a top choice. Get the best deals on Omron sensors at IndMALL Automation in Chennai.
