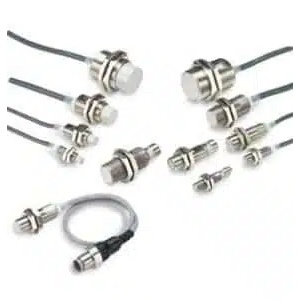

Omron E2E-X2ME1-M1 Proximity Sensor
Omron E2E-X2ME1-M1 uses an M8 unshielded inductive sensing body with a 2 mm sensing distance and a 0 to 1.6 mm setting distance. It provides a DC 3-wire NPN output with NO operation through an M12 connector and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, using an iron 12 × 12 × 1 mm standard sensing object. Response frequency is 0.8 kHz, current consumption is 13 mA max., and differential travel is 10% max. of sensing distance. A red operation indicator, load short-circuit protection, surge suppression, reverse-polarity protection, and IP67 protection are listed. The E2E-X2ME1-M1 appears under M8 proximity sensors from Omron sensing products.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X2ME1-M1 |
Omron E2E-X2ME1-M1 Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M8 |
| Mounting | Unshielded |
| Sensing Distance | 2 mm |
| Setting Distance | 0 to 1.6 mm |
| Output Configuration | DC 3 Wire NPN |
| Operation Mode | NO |
| Connection | M12 Connector |
| Power Supply Voltage | 12 to 24 VDC |
| Standard Target | Iron, 12 × 12 × 1 mm |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 0.8 kHz |
| Current Consumption | 13 mA max |
| Indicator | Operation indicator (red) |
| Protection Circuit | Load short-circuit protection, Surge suppressor, Reverse polarity protection |
| Ambient Temperature Range | Operating/Storage: −40 to 85°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | ±15% max. of sensing distance at 23°C in the temperature range of −40 to 85°C ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Dielectric Strength | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 500 m/s2 10 times each in X, Y, and Z directions |
| Voltage Influence | ±1% max. of sensing distance at rated voltage in the rated voltage ±15% range |
| Degree Of Protection | IP67 |
| Weight | Approx. 15 g |
The Omron E2E-X2ME1-M1 Proximity Sensor uses an M8 unshielded inductive sensing body with a 2 mm sensing distance and a 0 to 1.6 mm setting distance. It provides a DC 3-wire NPN output with NO operation through an M12 connector and operates from 12 to 24 VDC. Ferrous metal is the specified detectable object, with an iron 12 × 12 × 1 mm standard sensing object. Response frequency is 0.8 kHz, current consumption is 13 mA max., and differential travel is 10% max. of sensing distance. A red operation indicator is provided, while load short-circuit protection, surge suppression, and reverse-polarity protection are specified.
Operating and storage conditions for the E2E-X2ME1-M1 extend from -40 to 85°C, with humidity from 35% to 95%. Temperature influence is ±15% max. of sensing distance at 23°C across -40 to 85°C and ±10% max. across -25 to 70°C. Insulation resistance is 50 MΩ min. at 500 VDC, dielectric strength is 1,000 VAC for 1 minute, and voltage influence is ±1% max. within rated voltage ±15%. Vibration resistance is specified at 10 to 55 Hz with 1.5 mm double amplitude for two hours in each axis, while shock resistance is 500 m/s² ten times in each direction. IP67 protection is listed. For another NPN NO E2E model using a pre-wired 2 m cable and a 3 mm sensing distance, see E2E-X3D1-N 2M.
