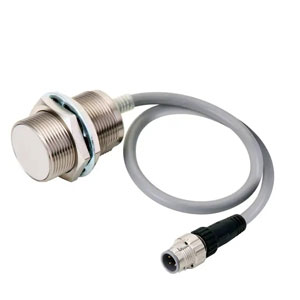

Omron E2E-X10D1-M1G Proximity Sensor
The Omron E2E-X10D1-M1G Proximity Sensor offers Inductive, M30, Shielded, 10 mm Sensing distance, DC 2 Wire NO Output, M12 Connector, 12 to 24 VDC Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron E2A Series.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | E2E-X10D1-M1G |
Omron E2E-X10D1-M1G Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Inductive |
| Size | M30 |
| Mounting | Shielded |
| Sensing Distance | 10 mm |
| Setting Distance | 0 to 8.0 mm |
| Output Configuration | DC 2 Wire |
| Operation Mode | NO |
| Connection | M12 Connector |
| Power Supply Voltage | 12 to 24 VDC |
| Body Material | Stainless steel |
| Standard Target | Iron, 30 Γ 30 Γ 1 mm |
| Leakage Current | 0.8 mA max |
| Differential Travel | 15% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 0.4 kHz |
| Indicator | Operation indicator (red) and setting indicator (green) |
| Protection Circuit | Surge suppressor, Load short-circuit protection (for control and diagnostic output) |
| Ambient Temperature Range | Operating: β25 to 70Β°C, Storage: β40 to 85Β°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/storage: 35% to 95% (with no condensation) |
| Insulation Resistance | Β±10% max. of sensing distance at 23Β° C in the temperature range of β25Β° C to 70Β° C |
| Dielectric Strength | 50 MΞ© min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | 1,000 m/s2 10 times each in X, Y, and Z directions |
| Voltage Influence | Β±1% max. of sensing distance at rated voltage in the rated voltage Β±15% range |
| Degree Of Protection | IP67 |
| Weight | Approx. 90 g |

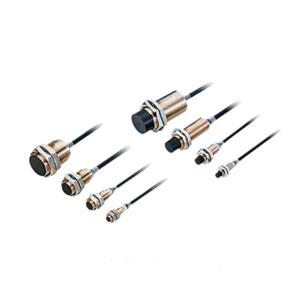

The Omron E2E-X10D1-M1G is often compared with other models in the E2E Standard Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron E2E-X1R5E1 2M (M8, 1.5 mm Sensing Distance, DC 3 Wire NPN, NO, PVC (oil-resistant), Pre Wired, Length 2M), Omron E2E-X18ME1 2M (M30, 18 mm Sensing Distance, DC 2-Wire, NO, PVC (oil-resistant), Pre Wired, Length 2M), and Omron E2E-X10MY1 2M (M18, 10 mm Sensing Distance, AC 2 Wire, NO, PVC (oil-resistant), Pre Wired, Length 2M) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The E2E-X10D1-M1G integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Standard Proximity Sensor.
